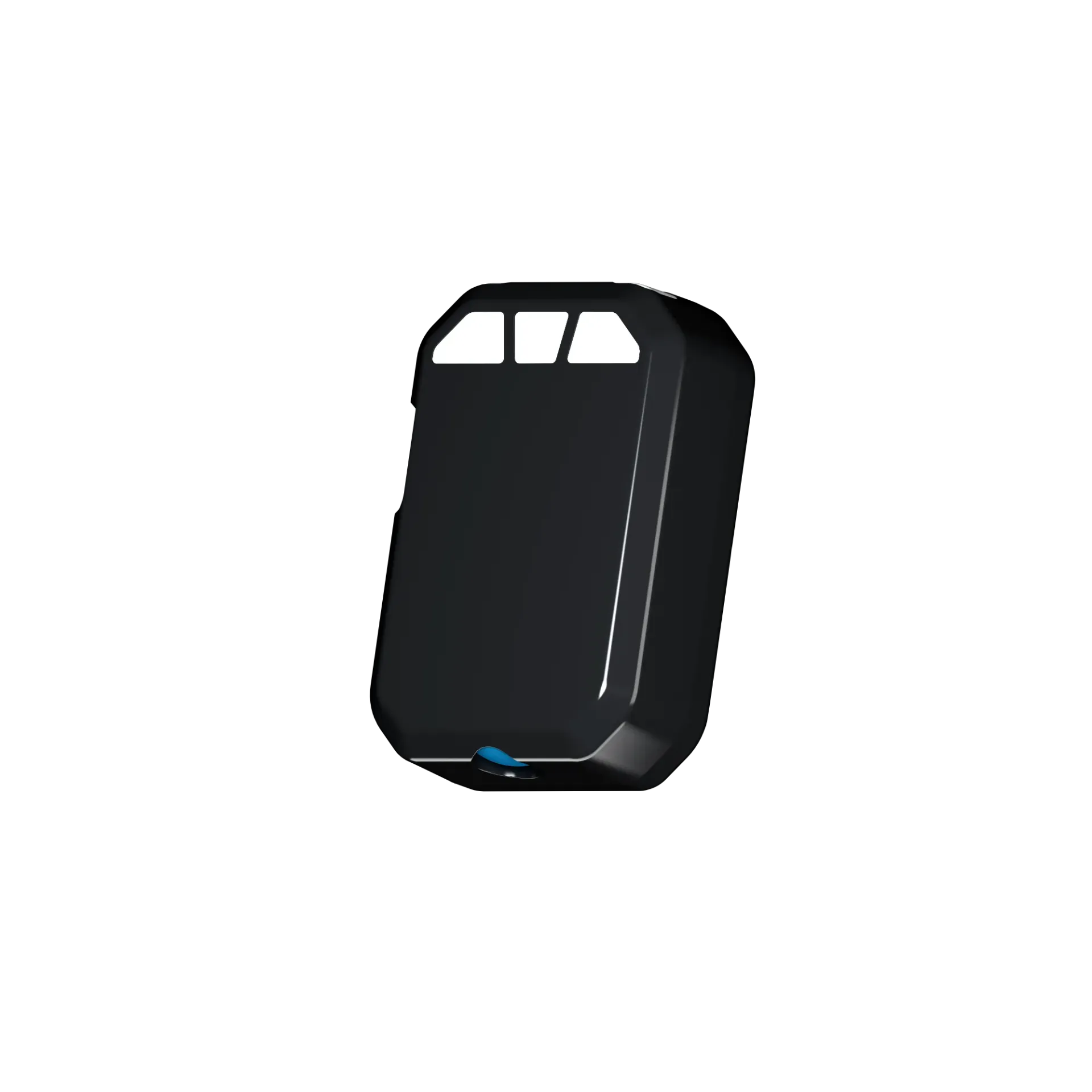

SEALEXBEU868

The TEKTELIC SEAL Ex (SEALEXBEU868) is the ATEX/IECEx certified version of the SEAL wearable GPS tracker, designed for personnel safety in potentially explosive atmospheres such as oil and gas facilities, chemical plants, refineries, and other Zone 1 hazardous areas. Built on the same proven SEAL platform with full ATEX Zone 1 certification, the device delivers the complete suite of safety features — fall detection via 3-axis MEMS accelerometer, elevation detection via barometric pressure, integrated panic/SOS button, audio and visual alarms, geofencing, and multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) plus Bluetooth Low Energy for indoor positioning. IP67 rugged enclosure. Powered by 3× AA Energizer Ultimate Lithium batteries. LoRaWAN Class A radio at up to 23 dBm Tx with −137 dBm sensitivity. Essential safety equipment for lone workers in hazardous industrial environments.
Add to cart
Add to wishlist
Price
367.56 € 367.56 € (Tax excluded)
367.56 € (Tax excluded)

Terms and Conditions
Contact Us
Key features Technical Specs Documentation

Key features

ATEX/IECEx Zone 1Certified for explosive atmospheres · oil, gas, chemical
Personnel safetyFall detection · elevation detection · panic button
GNSS + BLEGPS, GLONASS, Galileo, BeiDou outdoor · BLE for indoor
Audio & visual alarmsBuzzer + LEDs · local emergency indication
LoRaWAN EU868Class A · 23 dBm Tx · long-range coverage
8–15 months battery3× AA Energizer Ultimate Lithium · user-replaceable


Technical Specs

ATEX categoryZone 1 · gas and dust atmospheres
IECExCertified for international hazardous-area use
ApplicationOil and gas · petrochemical · chemical plants · refineries · mining


Panic / SOS buttonPush button on enclosure · triggers emergency uplink
Fall detectionVia 3-axis MEMS accelerometer
Elevation detectionVia barometric pressure sensor
Audio alarmIntegrated buzzer for local indication
Visual alarmTwo sets of LEDs (top and front)
GeofencingConfigurable boundaries with alerts
Event-based startupAutomatic reporting on movement or alarm trigger


LoRaWAN radioEU868 (863–870 MHz) · Class A
RF transmit powerUp to 23 dBm
RF sensitivity−137 dBm (SF12, 125 kHz)
BLEBluetooth Low Energy for indoor tracking
AntennaInternal
Battery3× AA Energizer Ultimate Lithium (L91) · ATEX-approved
Battery life8–15 months (configuration dependent)
Other regions availableUS915, AU915, AS923, IN865, KR920


Operating temperature−20 °C to +50 °C
Ingress protectionIP67
VariantNon-clip · for lanyard or belt wear
Form factorATEX-certified wearable enclosure
ComplianceATEX · IECEx · CE · LoRaWAN certified



ATEX compliance: This product is ATEX/IECEx Zone 1 certified. Only ATEX-approved batteries (Energizer L91 Ultimate Lithium AA) may be used. Refer to the SEAL Ex User Guide (T0008740) for the full hazardous-area installation procedure.


Other regions: This product page covers the EU868 variant. Versions for other regional channel plans are available on request.


Use cases: Oil and gas facilities · refineries · chemical and petrochemical plants · pharmaceutical manufacturing with hazardous materials · grain silos · paint and solvent facilities.


Clip variant: An ATEX clip version (SEALEXCEU868) is available with harness clip detection.


Non-ATEX variant: For standard industrial environments without ATEX requirements, see SEALBEU868.


Documentation

SEAL Ex Wearable ATEX Safety GPS Tracker Product Page (Tektelic)

SEAL Ex User Guide (PDF)
