SEALCEU868

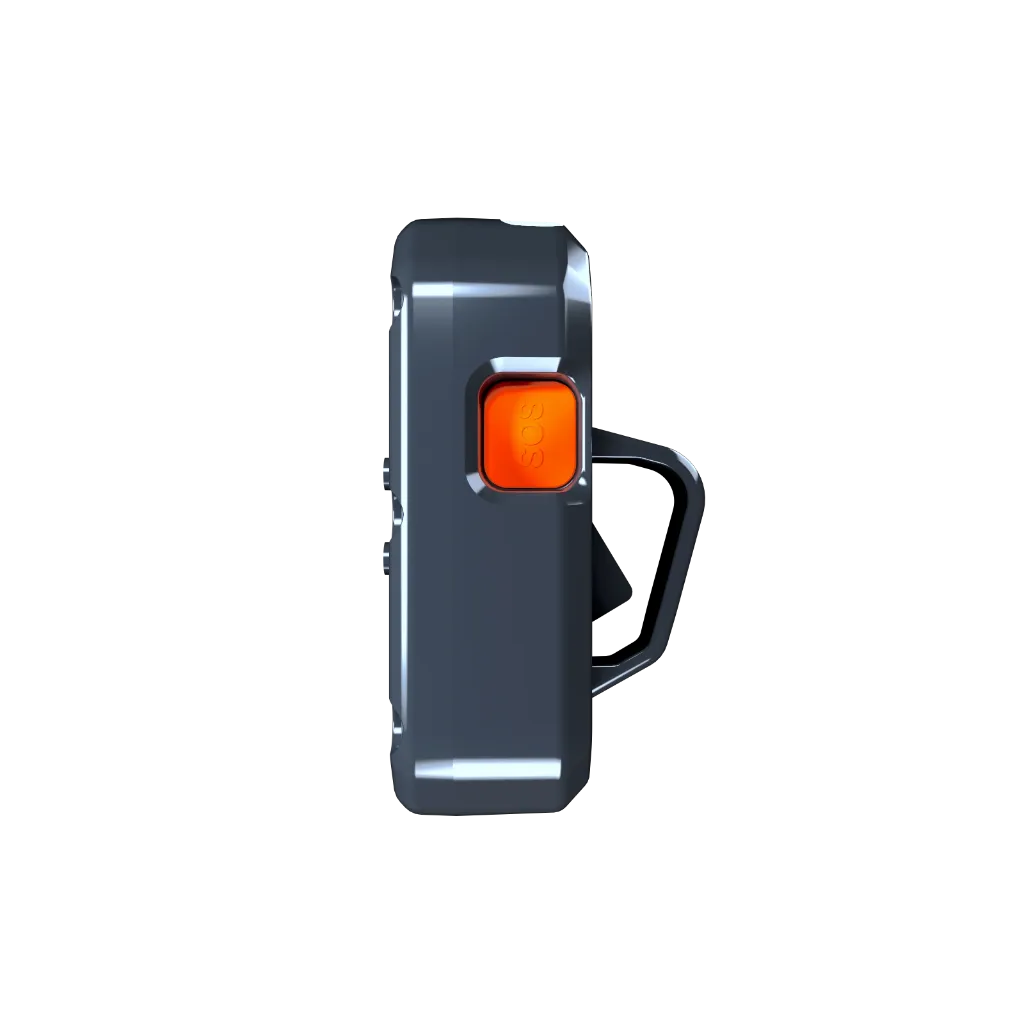

The TEKTELIC SEAL with Clip (SEALCEU868) is the harness-clip variant of the SEAL wearable GPS tracker, designed for personnel safety in industrial environments where attachment integrity is critical. The harness clip detects whether the unit is properly clipped in place and triggers a local audio-visual alarm if the device is disconnected — ensuring workers cannot accidentally leave the tracker behind or have it dislodged. All SEAL safety features are included: fall detection via 3-axis MEMS accelerometer, elevation detection via barometric pressure, integrated panic/SOS button, audio and visual alarms, geofencing, and multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) plus Bluetooth Low Energy for indoor positioning. IP67 rugged enclosure. Powered by 3× AA Energizer Ultimate Lithium batteries. LoRaWAN Class A radio at up to 23 dBm Tx with −137 dBm sensitivity.
Add to cart
Add to wishlist
Price
261.96 € 261.96 € (Tax excluded)
261.96 € (Tax excluded)

Terms and Conditions
Contact Us
Key features Technical Specs Documentation

Key features

Harness clip detectionAlarm if device disconnected · attachment integrity
Personnel safetyFall detection · elevation detection · panic button
GNSS + BLEGPS, GLONASS, Galileo, BeiDou outdoor · BLE for indoor
Audio & visual alarmsBuzzer + LEDs · local emergency indication
LoRaWAN EU868Class A · 23 dBm Tx · −137 dBm sensitivity
8–15 months battery3× AA Energizer Ultimate Lithium · user-replaceable


Technical Specs

Harness clip detectionTriggers local alarm if device is disconnected
Panic / SOS buttonPush button on enclosure · triggers emergency uplink
Fall detectionVia 3-axis MEMS accelerometer
Elevation detectionVia barometric pressure sensor
Audio alarmIntegrated buzzer for local indication
Visual alarmTwo sets of LEDs (top and front)
Mute buttonManual silence of audio alarm
GeofencingConfigurable boundaries with alerts


GNSS constellationsGPS, GLONASS, Galileo, BeiDou
Indoor positioningBLE-assisted via beacons
Accelerometer3-axis MEMS · fall and impact detection
Barometric pressureElevation detection
Battery indicatorRemaining battery level reporting


LoRaWAN radioEU868 (863–870 MHz) · Class A
RF transmit powerUp to 23 dBm
RF sensitivity−137 dBm (SF12, 125 kHz)
BLEBluetooth Low Energy for indoor tracking
AntennaInternal
Battery3× AA Energizer Ultimate Lithium (L91) · user-replaceable
Battery life8–15 months (configuration dependent)
Other regions availableUS915, AU915, AS923, IN865, KR920


Operating temperature−20 °C to +50 °C
Ingress protectionIP67
VariantClip · designed for harness or belt attachment with detection
ComplianceCE · LoRaWAN certified



Other regions: This product page covers the EU868 variant. Versions for other regional channel plans are available on request.


When to choose the clip variant: Use this variant for hazardous aerial work, harness-required environments (e.g., working at height), or any scenario where the tracker must remain attached to a specific worker or harness.


Use cases: Working at height · scaffolding workers · roofing · tower climbing · construction safety · industrial work requiring harnesses.


Battery: Use only Energizer L91 Ultimate Lithium AA size 1.5 V lithium iron disulfide batteries.


Non-clip variant: For lanyard or belt wear without clip detection, see SEALBEU868.


Documentation

SEAL Wearable GPS Tracker Product Page (Tektelic)

SEAL User Guide (PDF)
