SENOMXEU868

SENOMXEU868

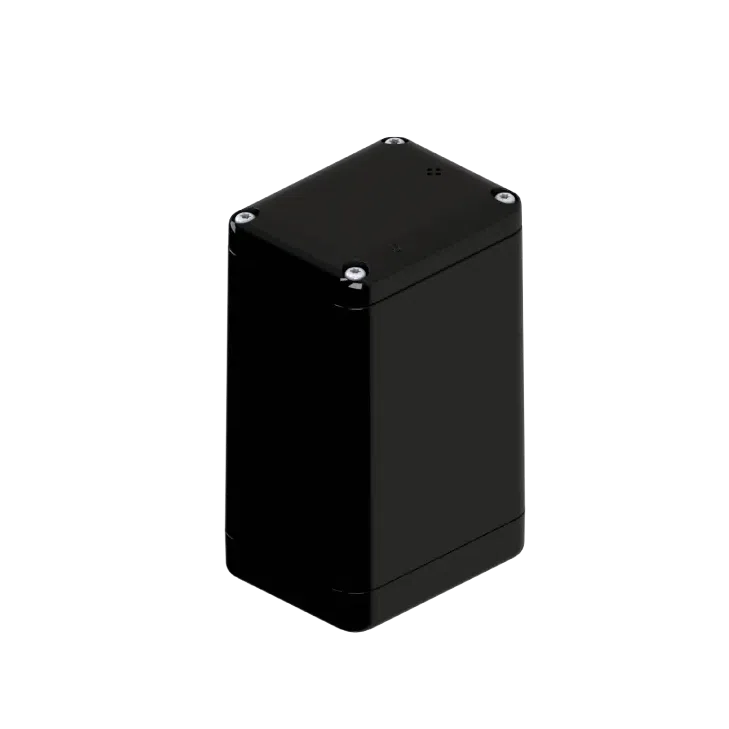

The TEKTELIC PELICAN Ex (SENOMXEU868) is the ATEX Zone 1/21 certified variant of the PELICAN enterprise outdoor tracker, designed for asset tracking in potentially explosive atmospheres — industrial, oil and gas sites, mining operations, chemical processing plants, and refineries. The compact IP67 enclosure houses a LoRaWAN radio (15 dBm Tx, −137 dBm Rx sensitivity), a Bluetooth Low Energy transceiver supporting dual-mode operation (Tracker mode for location, Beacon mode for broadcasting presence), an onboard accelerometer for movement, shock, and vibration detection, and ambient temperature monitoring. Adaptive smart reporting transmits frequently when assets are in motion and conserves battery when stationary, delivering 10+ years of operation in tracker mode (3 years in beacon mode) from a single user-replaceable C-cell battery. Onboarding takes seconds via the TEKTELIC LeapX app, with asset visualization through the LOCUS application and an open API for integration with any third-party RTLS platform.
Add to cart
Add to wishlist
Price
114.42 € 114.42 € (Tax excluded)
114.42 € (Tax excluded)

Terms and Conditions
Contact Us
Key features Technical Specs Documentation

Key features

ATEX Zone 1/21Certified for explosive atmospheres · gas and dust
Outdoor asset trackingLoRaWAN + BLE · difficult RF environments
Dual-mode BLETracker mode (location) and Beacon mode (broadcast)
10+ years batteryTracker mode · C-cell · 3 years in beacon mode
AccelerometerMovement detection · shock and vibration alerts
LOCUS integrationTEKTELIC LOCUS app · LeapX onboarding · open API


Technical Specs

ATEX categoryZone 1 (gas) and Zone 21 (dust)
ATEX markingII 2G Ex ia IIC T4 Gb · II 2D Ex ia IIIC T135° Db IP67
StandardsEN 60079-0:2013 · EN 60079-11:2012
ApplicationOil and gas · mining · chemical processing · grain handling


Tracking methodLoRaWAN positioning · BLE-assisted
BLE operationDual-mode · Tracker (location) and Beacon (broadcast)
AccelerometerMovement, shock, vibration detection
TemperatureAmbient MCU temperature monitoring
ReportingAdaptive smart reporting · context-aware
Battery indicatorRemaining battery level reporting


LoRaWAN radioEU868 (863–870 MHz) · Class A
RF transmit power15 dBm
RF sensitivityUp to −137 dBm (SF12, 125 kHz)
BLEBluetooth Low Energy · dual-mode · up to 0 dBm in beacon
AntennaInternal
BatteryC-cell · user-replaceable · ATEX-approved
Battery life (tracker)10+ years
Battery life (beacon)3 years
Other regions availableUS915, AU915, AS923, IN865, KR920


Operating temperature−20 °C to +50 °C
Ingress protectionIP67
Form factorCompact ATEX-certified outdoor enclosure
ComplianceATEX · CE · LoRaWAN certified



ATEX compliance: PELICAN Ex is ATEX Zone 1/21 certified. Only ATEX-approved batteries may be used. Refer to the user guide for hazardous-area installation procedures and certification details.


Other regions: This product page covers the EU868 variant. Versions for other regional channel plans are available on request.


Use cases: Industrial oil and gas sites · mining operations · processing plants · refineries · chemical facilities · grain silos · pharmaceutical manufacturing with hazardous materials.


Non-ATEX variant: For standard industrial environments without ATEX requirements, see the PELICAN base variant.


Documentation

PELICAN Ex Enterprise ATEX Outdoor Tracker Product Page (Tektelic)

PELICAN Ex Spec Sheet (PDF)
