SENCMPEU868

SENCMPEU868

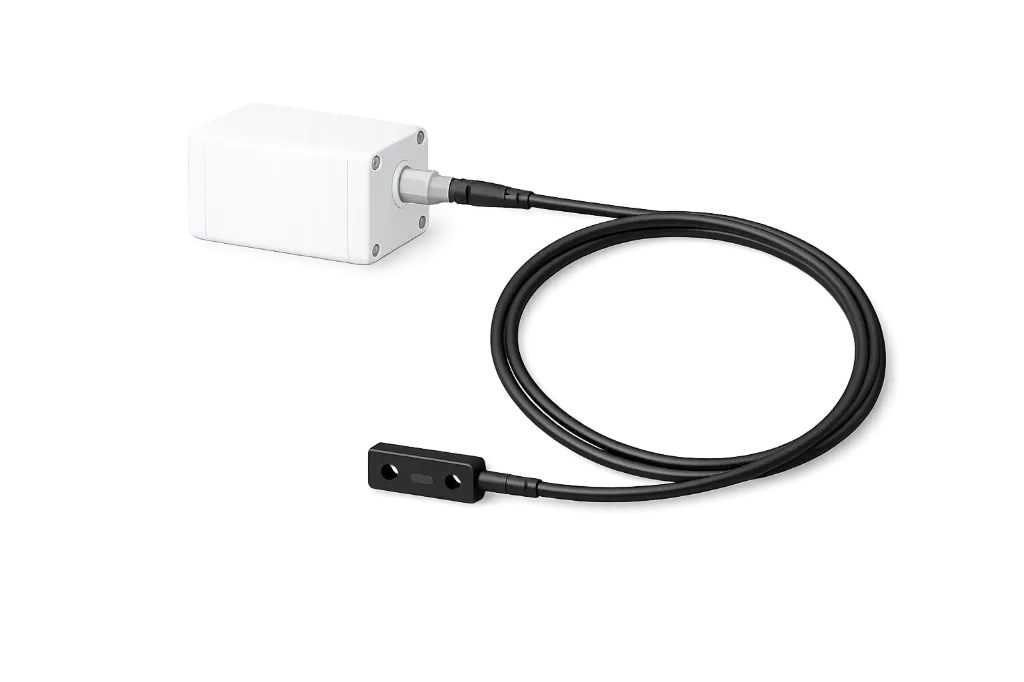

The TEKTELIC TUNDRA with Probe (SENCMPEU868-J) extends the standard TUNDRA cold chain sensor with an external temperature probe — enabling the main sensor body to remain outside the refrigeration unit while the M5-connected 1.5 m probe measures inside the chamber. This configuration improves LoRaWAN radio performance (no signal attenuation from metal walls) and extends battery life in deep-freeze applications. The sensor itself measures ambient temperature and humidity in its mounting location while the external probe measures the cold chamber temperature, providing dual-zone monitoring on a single device. Rugged IP67 enclosure, −40 to +70 °C operating range, 10-year battery life on a single C-cell LTC battery. Onboard data logging buffers readings during periods without LoRaWAN coverage. Ideal for HACCP compliance, pharmaceutical and vaccine storage, ultra-low temperature freezers, and any cold chain application requiring optimal RF performance.
Add to cart
Add to wishlist
Price
122.52 € 122.52 € (Tax excluded)
122.52 € (Tax excluded)

Terms and Conditions
Contact Us
Key features Technical Specs Documentation

Key features

External probe1.5 m M5 cable · for deep-freeze or sealed chambers
Rugged IP67Sealed enclosure · −40 to +70 °C · zero maintenance
10 years batteryLonger life: sensor outside cold zone · C-cell LTC
Dual-zone monitoringAmbient (sensor) + chamber (probe) on one device
LoRaWAN EU868Class A · internal antenna · better RF outside the chamber
Easy deploymentScrew-mount bracket included · LeapX onboarding


Technical Specs

External probe (chamber)1.5 m M5-connector cable · −40 to +70 °C
Ambient temperature (sensor body)Precision sensor · mounting-location air
Ambient humidity (sensor body)Built-in relative humidity sensor
Data loggingOnboard storage · store-and-forward function
Reporting modesPeriodic and threshold-based
Battery indicatorRemaining battery level reporting


LoRaWAN radioEU868 (863–870 MHz) · Class A
AntennaInternal · improved RF performance outside metal chambers
BatteryC-cell LTC · user-replaceable
Battery life10 years (configuration dependent · longer than in-chamber installation)
Other regions availableUS915, AU915, AS923, IN865, KR920


OnboardingQR-based activation via TEKTELIC LeapX app
Remote configurationOTA via LoRaWAN downlinks · ATLAS or LeapX
Configurable parametersReporting intervals · temperature thresholds · alarms
Store and forwardBuffers readings during connectivity gaps
IntegrationOpen API · compatible with TTN, ChirpStack, Helium, Loriot and others


Operating temperature (sensor + probe)−40 °C to +70 °C
Probe cable length1.5 m
Probe connectorM5
Ingress protectionIP67
MountingScrew-mount bracket (included)
ComplianceCE · LoRaWAN certified



Other regions: This product page covers the EU868 variant. Versions for US915, AU915, AS923, IN865 and KR920 channel plans are available on request.


When to choose the probe variant: Use this variant when the refrigeration chamber has metal walls that degrade LoRaWAN signal, when the chamber is too cold for prolonged battery operation (typically < −20 °C continuous), or when you need to monitor both the chamber and the surrounding ambient environment from a single device.


Use cases: Ultra-low temperature freezers · pharmaceutical and vaccine storage · biological sample storage · deep-freeze cold rooms · HACCP compliance · sensitive cold chain transport.


Documentation

TUNDRA Cold Room Temperature & Humidity Sensor Product Page (Tektelic)

TUNDRA Spec Sheet (PDF)
