SEALEXCEU868

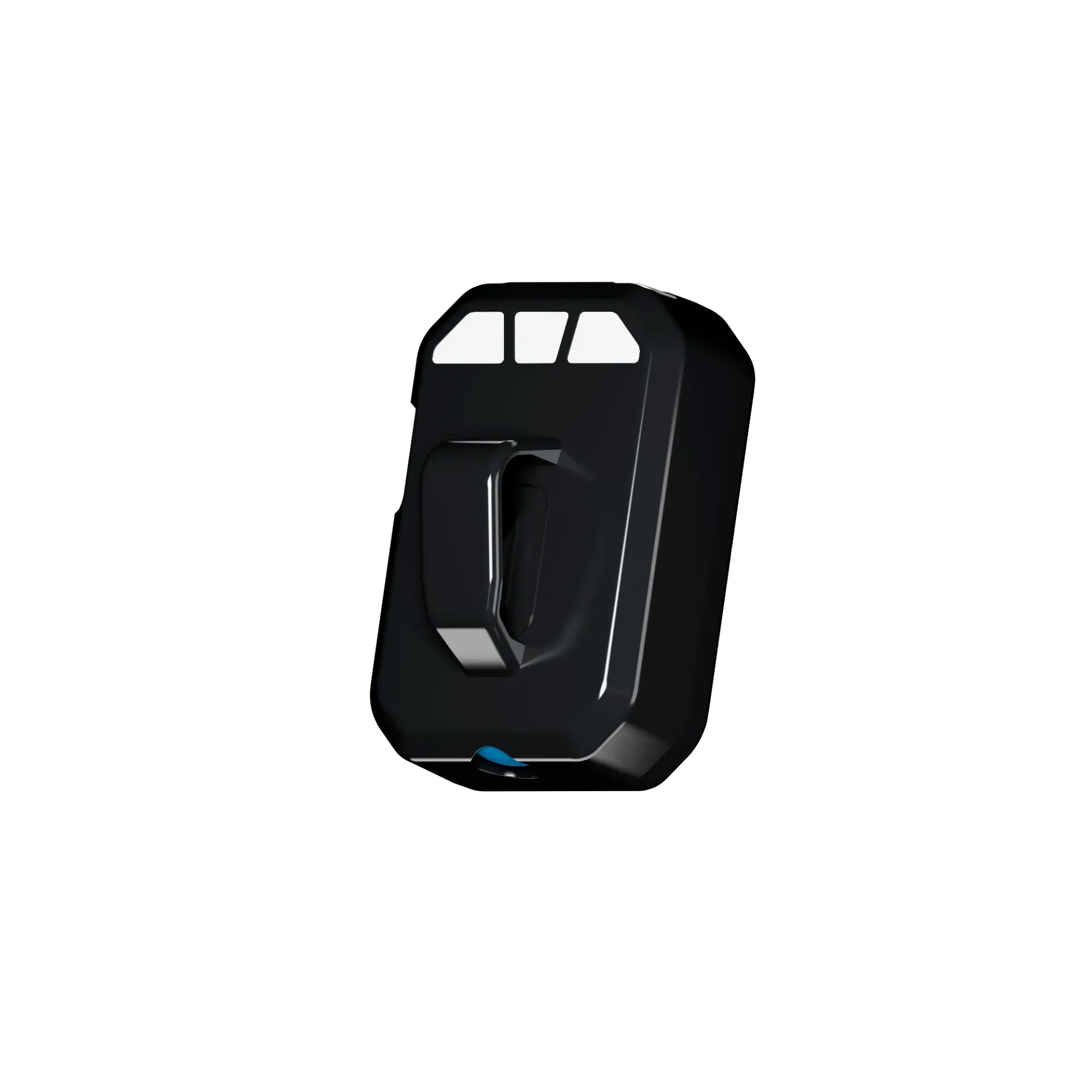

The TEKTELIC SEAL Ex with Clip (SEALEXCEU868) combines ATEX/IECEx Zone 1 hazardous-area certification with harness clip detection, making it the safest wearable tracker option for workers operating at height in explosive atmospheres — scaffolding in refineries, tower work in oil and gas facilities, suspended work in chemical plants. The harness clip detects whether the device is properly attached and triggers a local audio-visual alarm if disconnected. All SEAL safety features are included: fall detection via 3-axis MEMS accelerometer, elevation detection via barometric pressure, integrated panic/SOS button, audio and visual alarms, geofencing, and multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) plus Bluetooth Low Energy for indoor positioning. IP67 rugged ATEX-certified enclosure. Powered by 3× AA Energizer Ultimate Lithium batteries. LoRaWAN Class A radio at up to 23 dBm Tx.
Price
374.75 € 374.75 €
374.75 €
(Tax excluded)
Terms and Conditions
Key features Technical Specs Documentation

Key features

ATEX/IECEx Zone 1Certified for explosive atmospheres
Harness clip detectionAlarm if device disconnected · attachment integrity
Personnel safetyFall detection · elevation detection · panic button
GNSS + BLEGPS, GLONASS, Galileo, BeiDou outdoor · BLE for indoor
Audio & visual alarmsBuzzer + LEDs · local emergency indication
8–15 months battery3× AA Energizer Ultimate Lithium · ATEX-approved


Technical Specs

ATEX categoryZone 1 · gas and dust atmospheres
IECExCertified for international hazardous-area use
Clip variantAdds harness attachment integrity detection


Harness clip detectionTriggers local alarm if device is disconnected
Panic / SOS buttonPush button on enclosure · triggers emergency uplink
Fall detectionVia 3-axis MEMS accelerometer
Elevation detectionVia barometric pressure sensor
Audio alarmIntegrated buzzer for local indication
Visual alarmTwo sets of LEDs (top and front)
GeofencingConfigurable boundaries with alerts


LoRaWAN radioEU868 (863–870 MHz) · Class A
RF transmit powerUp to 23 dBm
RF sensitivity−137 dBm (SF12, 125 kHz)
BLEBluetooth Low Energy for indoor tracking
AntennaInternal
Battery3× AA Energizer Ultimate Lithium (L91) · ATEX-approved
Battery life8–15 months (configuration dependent)
Other regions availableUS915, AU915, AS923, IN865, KR920


Operating temperature−20 °C to +50 °C
Ingress protectionIP67
VariantClip · ATEX-certified for harness-required hazardous work
ComplianceATEX · IECEx · CE · LoRaWAN certified



ATEX compliance: ATEX/IECEx Zone 1 certified. Only ATEX-approved batteries (Energizer L91 Ultimate Lithium AA) may be used. Refer to the SEAL Ex User Guide for the full hazardous-area installation procedure.


Other regions: This product page covers the EU868 variant. Versions for other regional channel plans are available on request.


Use cases: Working at height in hazardous environments · scaffolding in refineries · tower work in oil and gas · suspended work in chemical plants · roof work in petrochemical facilities.


Non-clip ATEX variant: For standard ATEX wear without clip detection, see SEALEXBEU868.


Documentation

SEAL Ex Wearable ATEX Safety GPS Tracker Product Page (Tektelic)

SEAL Ex User Guide (PDF)
