Getting Started
1
Unbox & connect
Mount your owa450 on the developer board, connect the 24-pin harness, antennas and power supply
2
Access & configure
Connect via USB serial console or SSH — configure networking, cellular and peripherals
3
Develop & test
Use the cross compiler, Docker container or VM to write and deploy your application
4
Ship to production
Validate, package and deploy on standalone owa450 gateways in the field
1
Unbox & connect
Mount your owa450 on the developer board, connect the 24-pin harness, antennas and power supply
2
Access & configure
Connect via USB serial console or SSH — configure networking, cellular and peripherals
3
Develop & test
Use the cross compiler, Docker container or VM to write and deploy your application
4
Ship to production
Validate, package and deploy on standalone owa450 gateways in the field

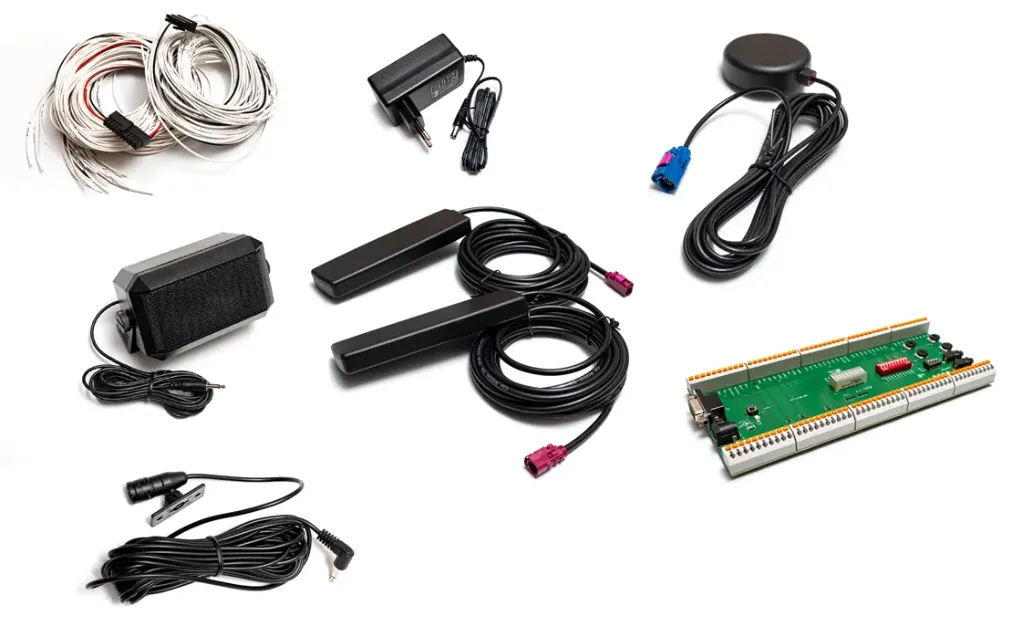

Included hardware
owa450 Developer board
Breakout board with full access to all owa450 interfaces and connectors
24-pin system connector
Pre-wired with 24 cables for all standard interfaces — plug and play
2x LTE + 1x GNSS antenna
Cellular and positioning antennas for wireless testing (GNSS not included with owa450I DK)
AC/DC power supply
230V AC to 12V DC — ready for workbench use
USB to RS232 cable
Serial console cable for direct gateway access and debugging
Documentation
Quick start guide, pinout reference and hardware integration manual
Additional items — owa450A+ variant DK only
The owa450A+ Development Kit additionally includes a 14-pin system connector with cables, a 4 ohm speaker and a microphone for audio application development and testing.
owa450 Developer board
Breakout board with full access to all owa450 interfaces and connectors
24-pin system connector
Pre-wired with 24 cables for all standard interfaces — plug and play
2x LTE + 1x GNSS antenna
Cellular and positioning antennas for wireless testing (GNSS not included with owa450I DK)
AC/DC power supply
230V AC to 12V DC — ready for workbench use
USB to RS232 cable
Serial console cable for direct gateway access and debugging
Documentation
Quick start guide, pinout reference and hardware integration manual
Additional items — owa450A+ variant DK only
The owa450A+ Development Kit additionally includes a 14-pin system connector with cables, a 4 ohm speaker and a microphone for audio application development and testing.
Software & development environment
Full Debian 10 OS
Complete Linux environment with OTA upgrades, mtdutils, can-utils, ALSA, BlueZ, WiFi tools, iptables, AppArmor, WireGuard and more
Debian ARM repositories
Access to the full standard Debian package repositories — unleash the complete power of open-source software
Multiple languages
Develop in C++, Java, Python, Node.js, Go, Lua and more — use the language that fits your project
Developer Zone access
Cross compiler, toolchain, latest firmware (Debian 10 / Linux 4.19.94), ready-to-use VM and Docker container
Application notes
Detailed code samples for I/O (AN3), GPS (AN5), power modes (AN8), GSM (AN2), K-Line (AN9) and more
Microservices & modules
Installable packages with ready-to-use services for network management, location, I/O interaction and more
Full Debian 10 OS
Complete Linux environment with OTA upgrades, mtdutils, can-utils, ALSA, BlueZ, WiFi tools, iptables, AppArmor, WireGuard and more
Debian ARM repositories
Access to the full standard Debian package repositories — unleash the complete power of open-source software
Multiple languages
Develop in C++, Java, Python, Node.js, Go, Lua and more — use the language that fits your project
Developer Zone access
Cross compiler, toolchain, latest firmware (Debian 10 / Linux 4.19.94), ready-to-use VM and Docker container
Application notes
Detailed code samples for I/O (AN3), GPS (AN5), power modes (AN8), GSM (AN2), K-Line (AN9) and more
Microservices & modules
Installable packages with ready-to-use services for network management, location, I/O interaction and more
