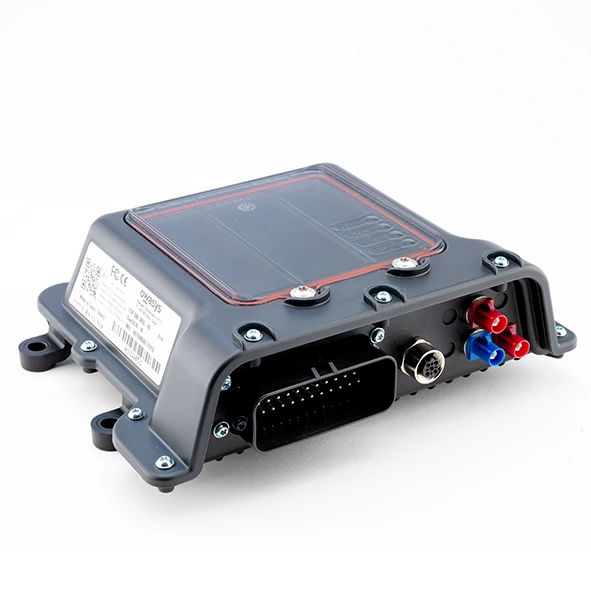

owa5x

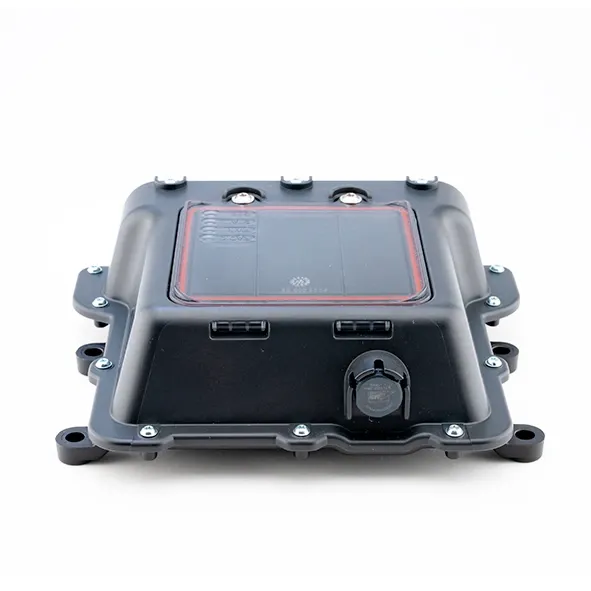

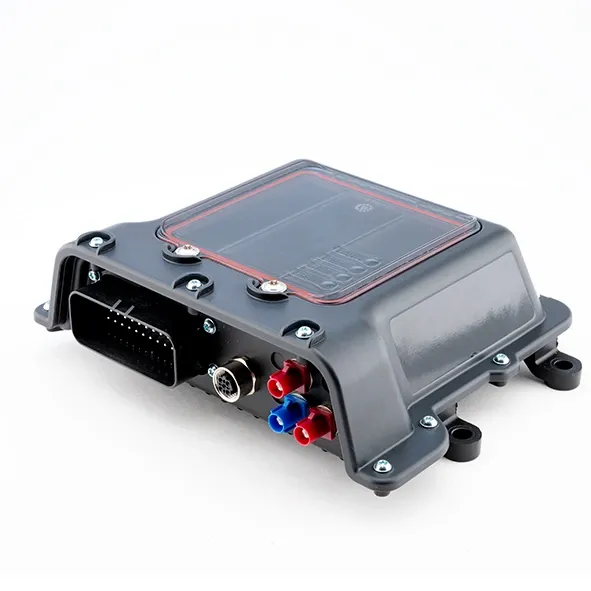

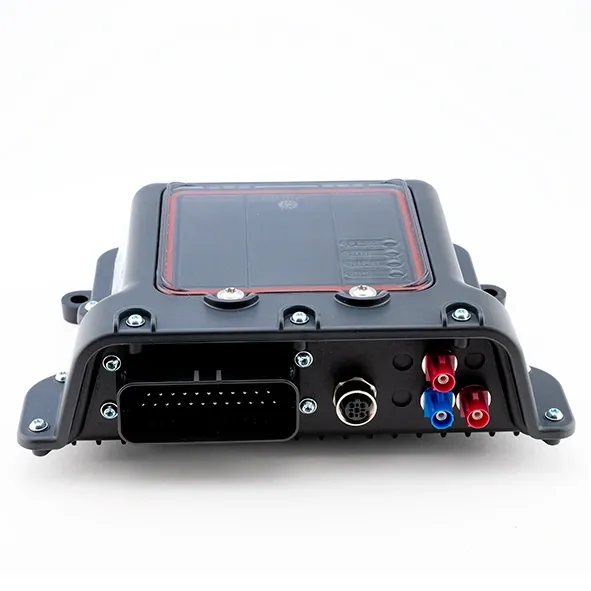

Take complete control of edge computing, fleet management and industrial IoT at the most demanding sites. The owa5x is Owasys' most powerful platform — a fully-featured Linux computer in a rugged IP67/IP6K9K enclosure built to withstand dust, water immersion and high-pressure steam cleaning.

Powered by an i.MX8 M Plus quad-core processor at 1.6 GHz with up to 4 GB RAM, optional Neural Processing Unit for AI/ML at the edge, and a full Debian or Yocto Linux environment. Global 4G LTE Cat 4 connectivity, multi-constellation GNSS with dead reckoning, WiFi 802.11ac, Bluetooth 5.2, and up to 4x CAN-FD SIC buses make the owa5x the most connected and versatile gateway in the Owasys family.

A massive set of interfaces — 12 digital I/O, 4 analog inputs, RS232/RS485, USB 3.0, and Single Pair Ethernet — combined with a 6-axis accelerometer/gyroscope give you everything you need for advanced telematics, SCADA, condition monitoring and autonomous vehicle applications.

Cybersecurity by design: High Assurance Boot (HAB) and TPM 2.0 protect your devices and data from the edge.

832.00 € 832.00 € (Tax excluded)
832.00 € (Tax excluded)

  • RAM
  • EMMC
  • CAN
  • 6 axis
  • RS485
  • WIFI + BT5.2
  • MFF2 SIM CARD
  • Cover
  • Fakra Antenne WIFI
  • GNSS
  • LAN
Add to cart
Terms and Conditions
Contact Us
Key FeaturesTechnical SpecsDocumentation

Key Features

IP67 / IP6K9KDust-tight, waterproof and protected from high-pressure steam cleaning
4G LTE Cat 4Worldwide with 3G/2G fallback — 150 Mbps DL
i.MX8 Quad A5364-bit at 1.6 GHz — optional NPU (2.3 TOPS) and GPU
2 GB LPDDR4+ 1 GB NAND + 8 GB eMMC + microSD (up to 4 GB / 32 GB)
Debian or Yocto LinuxFull Linux OS with standard repositories
ProgrammableC, Python, Go and more — highly customizable
Multi-GNSSGPS, GLONASS, Galileo, BeiDou — optional dead reckoning
6-axis MEMSProgrammable accelerometer + gyroscope
WiFi 802.11acSimultaneous AP + STA mode
Bluetooth 5.2Dual mode BR/EDR + BLE
Extensive interfacesUp to 4x CAN-FD SIC · 12x DI/O · 4x AI · RS232/RS485 · USB 3.0 · SPE or Ethernet
HAB Secure bootHigh Assurance Boot + TPM 2.0
Power efficient9–36V DC · low-power modes · optional Li-Ion backup
-40°C to +70°CWide operating temperature range
Rugged enclosureGlass-reinforced polyester · 768 g · FAKRA connectors
SIM optionsminiSIM (2FF) or MFF2 embedded



Technical Specs

Processori.MX8 M Plus Quad Core Cortex A53, 64-bit, 1.6 GHz
RAM2 GB LPDDR4 (option up to 4 GB)
Flash NAND1 GB SLC
Flash eMMC8 GB (option up to 32 GB)
Expandable storagemicroSD card holder
OSDebian distribution or Yocto Project file system
NPUNeural Processing Unit, up to 2.3 TOPS (optional)
GPUOpenVG 1.1, OpenGL ES 3.1, Vulkan, OpenCL 1.2 (optional)


LTE-FDD bandsB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD bandsB38/B39/B40/B41
UMTSB1/B2/B4/B5/B6/B8/B19
GSM850/900/1800/1900 MHz
LTE-FDD speedMax 150 Mbps DL / 50 Mbps UL
LTE-TDD speedMax 130 Mbps DL / 30 Mbps UL


WiFi802.11ac — simultaneous AP + STA mode
BluetoothDual mode Bluetooth 5.2 — BR/EDR + BLE


ConstellationsGPS, GLONASS, Galileo, BeiDou, QZSS (concurrent)
Channels72 continuous tracking
SBASWAAS, EGNOS, MSAS, GAGAN
Update rateUp to 10 Hz
Accuracy2.5 m CEP
Cold start26 seconds
Hot start< 1.5 seconds
Dead reckoningAvailable (depending on version)
Antenna power+3V @ 34 mA active


CAN-FDUp to 4x CAN-FD SIC bus
SensorsProgrammable 6-axis MEMS — accelerometer + gyroscope
TPMTPM 2.0
Digital I/O12 configurable — 50V max inputs · 10 OC outputs (200 mA) · 2 high-side switches (1A) · short-circuit protected
Wake signalsAll inputs function as wake signals for low-power modes
Counter inputsAll inputs usable as 32-bit counters (odometer), 3 kHz max
Analog inputs4x · 12-bit resolution · 1% accuracy · 0–5.12V or 0–30.72V (SW configurable)
RS2322x (1x TX/RX/CTS/RTS + 1x TX/RX or RS485 factory option)
USBUSB Host 3.0 (900 mA)
Ethernet10/100BASE-T1 (SPE) or 10/100BASE-TX
1-WireMaxim 1-Wire
AntennasFAKRA connectors
Power output5V / 500 mA
Status LEDs4x (Radio, Power, State, GPS)


Secure bootHAB — High Assurance Boot
TPMTPM 2.0


Input voltage9–36V DC (nominal 24V)
Consumption — Standby12.36 mA
Consumption — Run51.95 mA
Consumption — Run + GSM + GPS92.60 mA
RTC backup batteryStandard — 10 year duration
Li-Ion backup batteryOptional rechargeable 3.6V — inserted via battery cover


Without battery-40°C to +70°C
With battery (external power)-40°C to +55°C
With battery (battery powered)-20°C to +53°C
Battery charging0°C to +45°C
Industrial grade components-40°C to +85°C


IP ratingIP67 / IP6K9K
MaterialGlass-reinforced polyester
System connectorTE 776163-1 (35 pins)
SIMminiSIM (2FF)
Antenna connectorsFAKRA
Expandable storagemicroSD
Dimensions154 x 188 x 62 mm
Weight768 g




Feature availability depends on model configuration. Visit the Owasys Developer Zone for OS and kernel information, or contact your VYNZE account manager.


Documentation


BOK-000-5004-G_owa5X-Datasheet.pdf

7172_BOK-000_5001-F-PRODUCT VARIANTS owa5x.pdf
