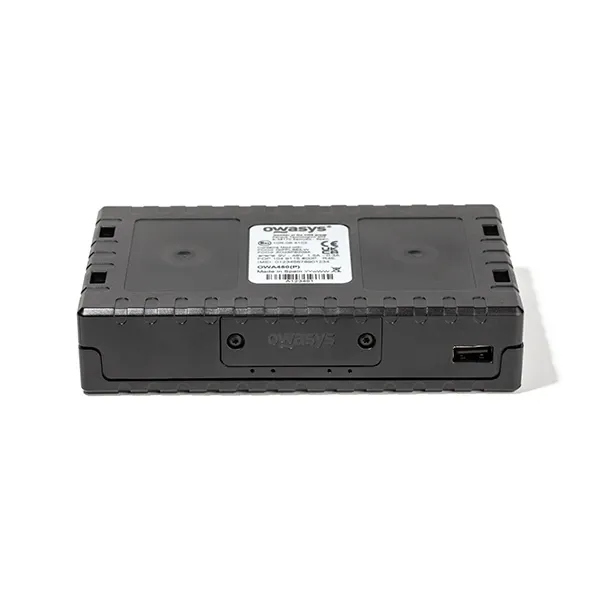

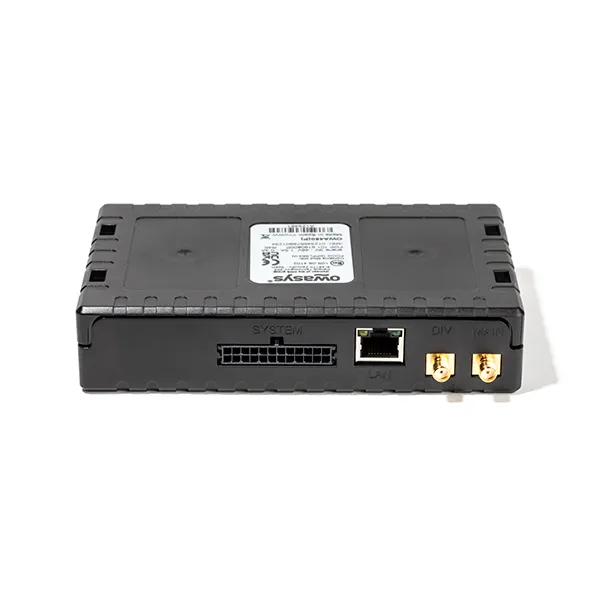

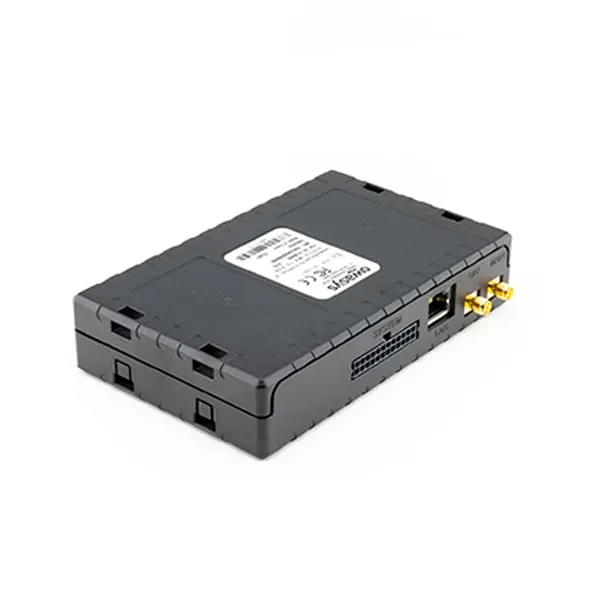

owa450I

Purpose-built for fixed industrial installations. The owa450I strips away the vehicle-oriented features of the owa450 family — no GNSS, no K-Line, no CAN by default — and focuses on what matters for industrial monitoring and connectivity: 3x RS232, RS485, USB, Ethernet, 10 digital I/O and global LTE Cat 1.

A clean, efficient platform for SCADA gateways, remote monitoring units, protocol converters and industrial data collection. With optional CAN bus, WiFi 802.11ac and Bluetooth 4.2, you can expand the owa450I to match your specific use case without paying for features you don't need.

Compact IP40 enclosure, wide 9–48V DC input range and operating temperature from -40 to +73°C. Runs full Debian Linux — programmable in C, Python and more. Optional TPM 2.0 for hardware-based security.

512.00 € 512.00 € (Tax excluded)
512.00 € (Tax excluded)

  • RAM 1GB / FLASH 2GB
  • CAN
  • WIFI+BT4.2
  • 2nd RS485
  • TPM 2.0
Add to cart
Terms and Conditions
Contact Us
Key FeaturesTechnical SpecsDocumentation

Key Features

IP40Protection against ingress of solid objects ≥ 1.0 mm
LTE Cat 1With 3G/2G fallback — worldwide
ARM Cortex A832-bit processor at 800 MHz
512 MB DDR3+ 1 GB NAND flash + microSD (up to 1 GB / 2 GB)
Debian LinuxFull distribution file system
ProgrammableC, Python and more — highly customizable
Serial interfaces3x RS232 · RS485 (optional 2nd) · USB Host 2.0
Ethernet10/100 Base-TX (RJ45)
10x digital I/O50V inputs · OC outputs · high-side switches · 4 analog inputs
Optional CAN busAdd CAN 2.0B when your application requires it
WiFi 802.11acOptional — a/b/g/n/ac
Bluetooth 4.2Optional wireless connectivity
Optional TPM 2.0Hardware security module
Power efficient9–48V DC · low-power modes · optional Li-Ion backup
Compact enclosurePC+ABS · 254 g · 150 x 94 x 32 mm · FAKRA connectors
iButton / 1-WireIdentification and access control via Maxim 1-Wire



Technical Specs

ProcessorARM Cortex A8, 32-bit, 800 MHz
RAM512 MB DDR3 (option up to 1 GB)
Flash1 GB NAND SLC (option up to 2 GB)
Expandable storagemicroSD card holder
OSDebian distribution file system


LTE Cat 1 bandsB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28/B66
UMTS/HSPA+B1/B2/B3/B4/B5/B6/B8/B19
GSMQuad band (GPRS/EDGE)
LTE speedDL 10.2 Mbps / UL 5.2 Mbps
GPRSClass B, Class 12 (4&4)
VoiceNo standard voice — SIP client required


WiFi802.11 a/b/g/n/ac (optional)
BluetoothBluetooth 4.2 (optional)


CAN busOptional — 1x CAN 2.0B (1 Mbps)
SensorsOptional accelerometer
TPMTPM 2.0 (optional)
Digital I/O10 configurable — 50V max inputs · 8 OC outputs (200 mA) · 2 high-side switches (1A) · short-circuit protected
Wake signalsAll inputs function as wake signals for low-power modes
Counter inputsAll inputs usable as 32-bit counters (odometer), 3 kHz max
Analog inputs4x · 12-bit resolution · 1% accuracy · 0–5.12V or 0–30.72V (SW configurable) · multiplexed with DI/O
RS2323x (configurable: 3x TX/RX, or 1x TX/RX + 1x TX/RX/CTS/RTS)
RS4851x standard · optional 2nd RS485
USBUSB Host 2.0
Ethernet10/100 Base-TX (RJ45)
1-Wire / iButtonMaxim 1-Wire — identification and access control
AntennasFAKRA connectors
Power output5V / 500 mA
Status LEDs4x


Input voltage9–48V DC
Consumption — Standby9.88 mA
Consumption — Run47 mA
Consumption — Run + GSM73 mA
RTC backup batteryStandard — 10 year duration
Li-Ion backup batteryOptional rechargeable 3.7V (2,000 mAh) — inserted via rear battery cover


Without battery-40°C to +73°C
With battery (external power)-40°C to +55°C
With battery (battery powered)-20°C to +55°C
Battery charging0°C to +45°C
Industrial grade components-40°C to +85°C


IP ratingIP40
MaterialPC+ABS
System connectorMolex Microfit 24-way (43045-2400)
SIMmicroSIM (3FF) · optional MFF2 embedded
Antenna connectorsFAKRA
EthernetRJ45
Expandable storagemicroSD
Dimensions150 x 94 x 32 mm
Weight254 g




The owa450I is the industrial-focused variant of the owa450 family, optimized for fixed installations without GNSS or K-Line. No GNSS positioning, no K-Line, no audio codec, no 9-axis MEMS. CAN bus and accelerometer are optional. 2nd RS485: if in main connector, removes UART5, DIO5/K-Line2 and DIO7/K-Line1; if in expansion connector, removes UART5 only. iButton multiplexed with DIO6. Contact your VYNZE account manager for exact configuration.


Documentation

BOK-100-9101-J_owa450-Datasheet.pdf

BOK-100-9108-H_owa450-Product-Variants.pdf
