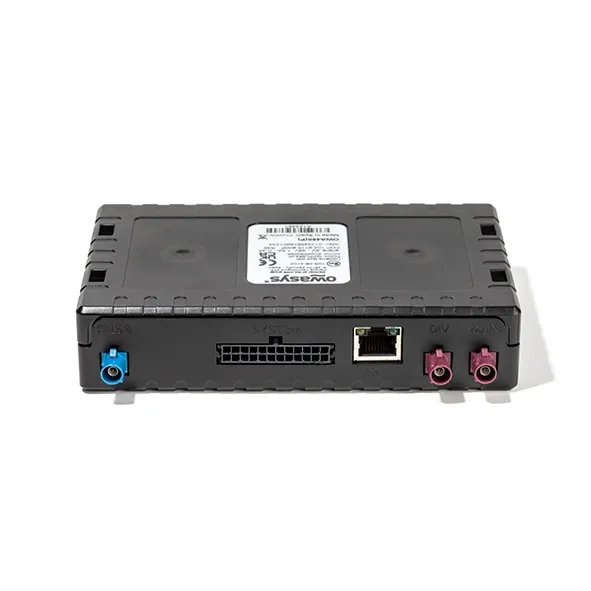

owa450A

The owa450A is the perfect platform for collecting, processing and transmitting data from your industrial machines and vehicles. With its powerful Cortex A8 processor, the owa450 processes information at the edge — your application decides what meaningful data gets sent to the cloud.

Housed in a compact IP40 enclosure designed for indoor cabinet installation, the owa450A combines global LTE Cat 1 connectivity, multi-constellation GNSS positioning, CAN bus, K-Line, RS232, RS485 and USB in a single device. A programmable accelerometer, 8 digital I/O, 4 analog inputs and optional WiFi/Bluetooth 4.2 round out a versatile and cost-effective platform for telemetry, fleet management and industrial monitoring.

Runs full Debian Linux — programmable in C, Python and more. Optional TPM 2.0 for hardware-based security.

  • Expanded storage
  • Wifi & BT
  • Additional KLINE
  • MEMS
  • TPM
  • Custom ethernet
  • Additional CAN
Price
552.00 € 552.00 €
552.00 €
(Tax excluded)
Terms and Conditions
Key FeaturesTechnical SpecsDocumentation

Key Features

IP40Protection against ingress of solid objects ≥ 1.0 mm
LTE Cat 1With 3G/2G fallback — worldwide
ARM Cortex A832-bit processor at 800 MHz
512 MB DDR3+ 1 GB NAND flash + microSD (up to 1 GB / 2 GB)
Debian LinuxFull distribution file system
ProgrammableC, Python and more — highly customizable
Multi-GNSSGPS, GLONASS, Galileo, BeiDou — optional dead reckoning
3-axis accelerometerProgrammable motion detection · optional 9-axis MEMS upgrade
Interfaces1x CAN 2.0B (optional 2nd) · K-Line · 3x RS232 · RS485 · USB 2.0 · Ethernet
8x digital I/O50V inputs · OC outputs · high-side switches · 4 analog inputs
WiFi 802.11acOptional — a/b/g/n/ac
Bluetooth 4.2Optional wireless connectivity
Optional TPM 2.0Hardware security module
Power efficient9–48V DC · low-power modes · optional Li-Ion backup
Compact enclosurePC+ABS · 254 g · 150 x 94 x 32 mm · FAKRA connectors
iButton / 1-WireDriver identification and access control via Maxim 1-Wire



Technical Specs

ProcessorARM Cortex A8, 32-bit, 800 MHz
RAM512 MB DDR3 (option up to 1 GB)
Flash1 GB NAND SLC (option up to 2 GB)
Expandable storagemicroSD card holder
OSDebian distribution file system


LTE Cat 1 bandsB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28/B66
UMTS/HSPA+B1/B2/B3/B4/B5/B6/B8/B19
GSMQuad band (GPRS/EDGE)
LTE speedDL 10.2 Mbps / UL 5.2 Mbps
GPRSClass B, Class 12 (4&4)
VoiceNo standard voice — SIP client required


WiFi802.11 a/b/g/n/ac (optional)
BluetoothBluetooth 4.2 (optional)


ConstellationsGPS, GLONASS, Galileo, BeiDou, QZSS (concurrent)
Channels72 continuous tracking
SBASWAAS, EGNOS, MSAS, GAGAN
Update rateUp to 10 Hz
Accuracy2 m CEP
Cold start26 seconds
Hot start< 1.5 seconds
Signal reacquisition< 1 second
Dead reckoningOptional
Antenna power+3.3V active


CAN bus1x CAN 2.0B (1 Mbps) — optional 2nd CAN
K-Line1x (optional 2nd K-Line)
SensorsProgrammable accelerometer (standard) · optional 9-axis MEMS (ACC + gyro + magnetometer)
TPMTPM 2.0 (optional)
Digital I/O8 configurable — 50V max inputs · 8 OC outputs (200 mA) · 2 high-side switches (1A) · short-circuit protected
Wake signalsAll inputs function as wake signals for low-power modes
Counter inputsAll inputs usable as 32-bit counters (odometer), 3 kHz max
Analog inputs4x · 12-bit resolution · 1% accuracy · 0–5.12V or 0–30.72V (SW configurable) · multiplexed with DI/O
RS2323x (configurable: 3x TX/RX, or 1x TX/RX + 1x TX/RX/CTS/RTS)
RS4851x
USBUSB Host 2.0
Ethernet10/100 Base-TX (RJ45, optional M12)
1-Wire / iButtonMaxim 1-Wire — driver identification and access control
AntennasFAKRA connectors
Power output5V / 500 mA
Status LEDs4x


Input voltage9–48V DC
Consumption — Standby9.88 mA
Consumption — Run47 mA
Consumption — Run + GSM + GPS73 mA
RTC backup batteryStandard — 10 year duration

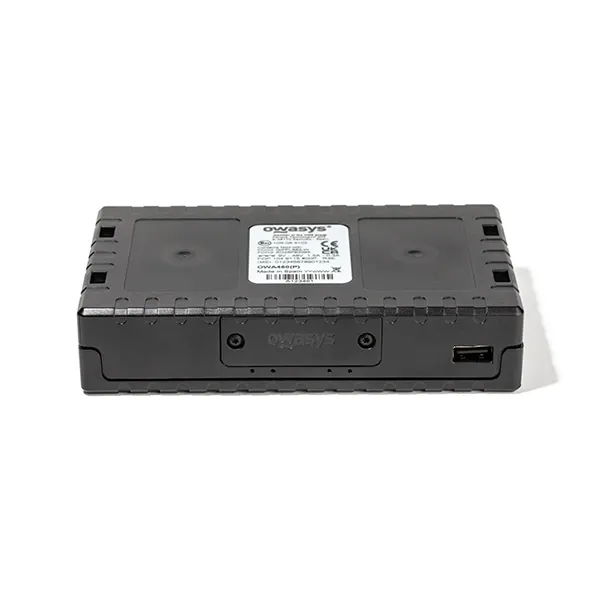

Li-Ion backup batteryOptional rechargeable 3.7V (2,000 mAh) — inserted via rear battery cover


Without battery-40°C to +73°C
With battery (external power)-40°C to +55°C
With battery (battery powered)-20°C to +55°C
Battery charging0°C to +45°C
Industrial grade components-40°C to +85°C


IP ratingIP40
MaterialPC+ABS
System connectorMolex Microfit 24-way (43045-2400)
SIMmicroSIM (3FF) · optional MFF2 embedded
Antenna connectorsFAKRA
EthernetRJ45 (optional M12)
Expandable storagemicroSD
Dimensions150 x 94 x 32 mm
Weight254 g




The owa450A is the standard variant of the owa450 family. Optional features: 2nd CAN (removes DIO-2 and DIO-4), 2nd K-Line (shares pin with DIO-5, removes UART1), 9-axis MEMS (incompatible with CAN 4), WiFi/BT 4.2, TPM 2.0 and MFF2 SIM. Analog inputs are multiplexed with digital I/O pins. iButton is multiplexed with DIO6. For the audio-enabled variant, see the owa450A+. Contact your VYNZE account manager for exact configuration.


Documentation

BOK-100-9101-J_owa450-Datasheet.pdf

BOK-100-9108-H_owa450-Product-Variants.pdf
