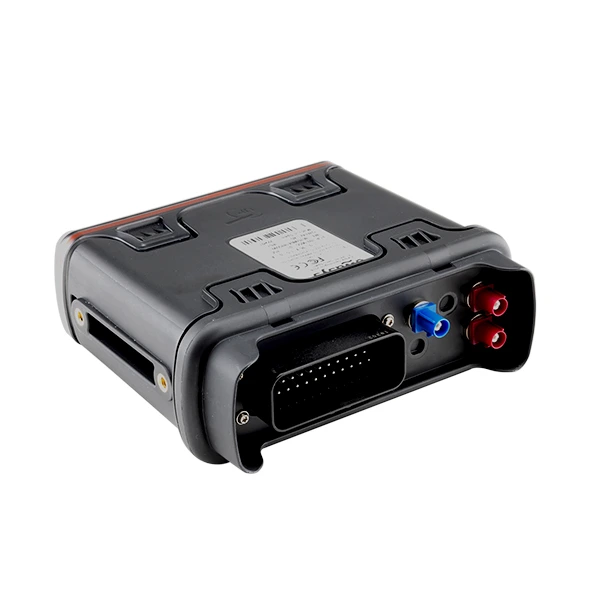

owa41A

Powerful yet streamlined industrial Linux IoT gateway for vehicle telematics and field asset monitoring. The owa41A sits close to your assets — monitoring, controlling and sending only meaningful data to your cloud services or control centre.

With an ARM Cortex A8 processor, global 4G LTE Cat 4 connectivity, multi-constellation GNSS, CAN bus, K-Line, 3x RS232 and a programmable 3-axis accelerometer, the owa41A is the perfect entry point into the owa4x family. Its focused interface set covers the essentials for fleet tracking, driver identification and remote telemetry — without the complexity of features you don't need.

All housed in a rugged IP67 glass-reinforced polyester enclosure designed for harsh environments from -40 to +70°C. Runs full Debian Linux — programmable in C, Python and more.

Need more interfaces? The owa43A and owa44A add RS485, USB, additional CAN buses, WiFi, Bluetooth, audio codec and 9-axis MEMS.

475.00 € 475.00 € (Tax excluded)
475.00 € (Tax excluded)

  • TPM 2.0
  • RAM 1GB / FLASH 2GB
  • Rear Cover
Add to cart
Terms and Conditions
Contact Us
Key FeaturesTechnical SpecsDocumentation

Key Features

IP67Dust-tight and protected from temporary water immersion
4G LTE Cat 4Worldwide with 3G/2G fallback — 150 Mbps DL
ARM Cortex A832-bit processor at 800 MHz
512 MB DDR3+ 1 GB NAND flash + microSD (up to 1 GB / 2 GB)
Debian LinuxFull distribution file system
ProgrammableC, Python and more — highly customizable
Multi-GNSSGPS, GLONASS, Galileo, BeiDou — optional dead reckoning
3-axis accelerometerProgrammable motion and orientation detection
Interfaces1x CAN 2.0B · 1x K-Line · 3x RS232 · Ethernet · Maxim 1-Wire
10x digital I/O50V inputs · 8 OC outputs · 2 high-side switches · 4 analog inputs
Optional TPM 2.0Hardware security module
Power efficient9–36V DC · low-power modes · optional Li-Ion backup
-40°C to +70°CWide operating temperature range

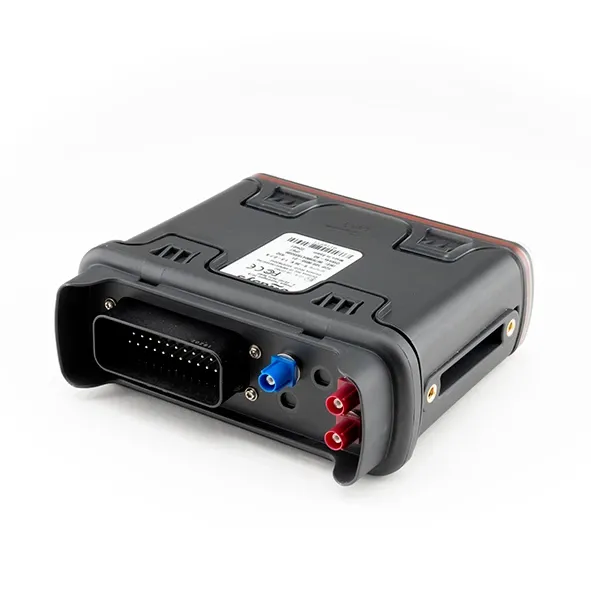

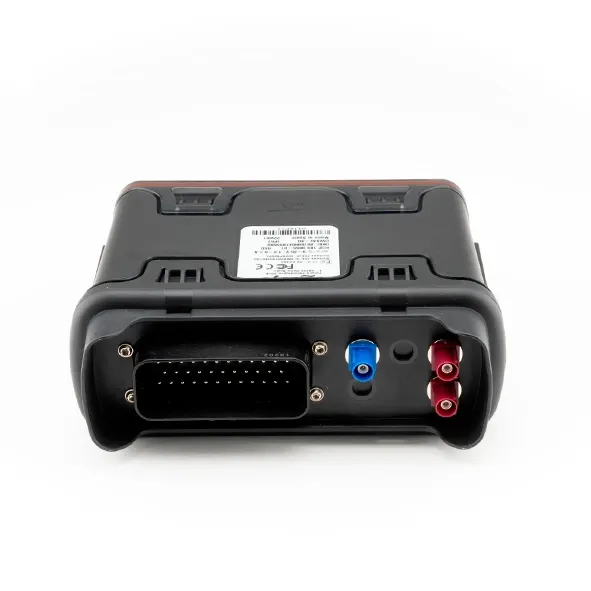

Rugged enclosureGlass-reinforced polyester · 385 g · FAKRA connectors
microSIM + microSDExpandable storage and SIM connectivity
iButton / 1-WireDriver identification and access control via Maxim 1-Wire



Technical Specs

ProcessorARM Cortex A8, 32-bit, 800 MHz
RAM512 MB DDR3 (option up to 1 GB)
Flash1 GB NAND SLC (option up to 2 GB)
Expandable storagemicroSD card holder
OSDebian distribution file system
ProgrammingC, Python


LTE-FDD bandsB1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD bandsB38/B39/B40/B41
UMTSB1/B2/B4/B5/B6/B8/B19
GSM850/900/1800/1900 MHz
LTE-FDD speedMax 150 Mbps DL / 50 Mbps UL
LTE-TDD speedMax 130 Mbps DL / 30 Mbps UL


WiFi802.11 a/b/g/n/ac (optional)
BluetoothBluetooth 4.2 (optional)


ConstellationsGPS, GLONASS, Galileo, BeiDou, QZSS (concurrent)
Channels72 continuous tracking
SBASWAAS, EGNOS, MSAS, GAGAN
Update rate10 Hz
Accuracy2 m CEP
Cold start26 seconds
Hot start< 1.5 seconds
Signal reacquisition< 1 second
Dead reckoningOptional
Antenna power+3.0V @ 34 mA active


CAN bus1x CAN 2.0B (1 Mbps full speed)
K-Line1x
SensorsProgrammable 3-axis accelerometer
TPMTPM 2.0 (optional)
Digital I/O10 configurable — 50V max inputs · 8 OC outputs (200 mA) · 2 high-side switches (1A) · short-circuit protected
Wake signalsAll inputs function as wake signals for low-power modes
Counter inputsAll inputs usable as 32-bit counters (odometer), 3 kHz max
Analog inputs4x · 12-bit resolution · 1% accuracy · 0–5.12V or 0–30.72V (SW configurable)
RS2323x (configurable: 3x TX/RX, or 1x TX/RX + 1x TX/RX/CTS/RTS, or 1x TX/RX/CTS/RTS/DCD/DTR)
Ethernet10/100 Base-TX
1-Wire / iButtonMaxim 1-Wire — driver identification and access control
AntennasFAKRA connectors
Power output5V / 500 mA
Status LEDs4x


Input voltage9–36V DC
Consumption — Standby9.88 mA
Consumption — Run47 mA
Consumption — Run + GSM + GPS73 mA
RTC backup batteryStandard — 10 year duration

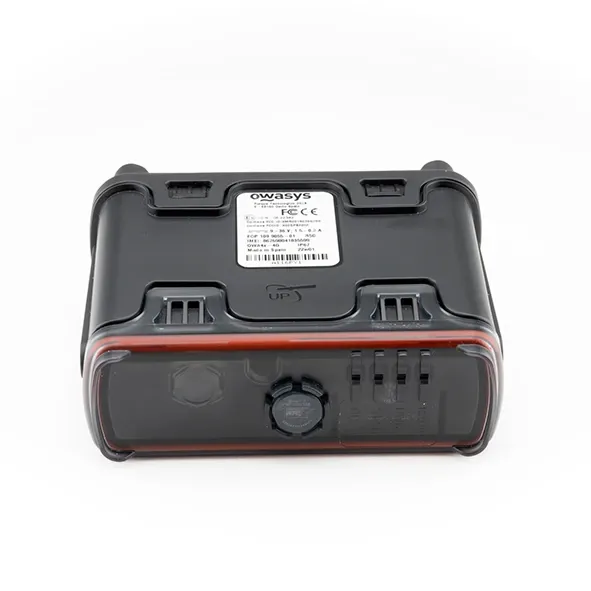

Li-Ion backup batteryOptional rechargeable 3.7V — inserted via rear battery cover


Without battery-40°C to +70°C
With battery (external power)-40°C to +55°C
With battery (battery powered)-20°C to +55°C
Battery charging0°C to +45°C
Industrial grade components-40°C to +85°C


IP ratingIP67
MaterialGlass-reinforced polyester
System connectorTE 776163-1 (35 pins)
SIMmicroSIM (3FF)
Antenna connectorsFAKRA
Expandable storagemicroSD
Dimensions149 x 135 x 58 mm
Weight385 g




The owa41A is the entry-level variant of the owa4x family. For expanded interfaces (RS485, USB, audio codec, additional CAN buses, WiFi/BT, 9-axis MEMS), see the owa43A or owa44A variants. Contact your VYNZE account manager for the full variants &amp; options matrix.


Documentation

BOK-100-9000-G_owa4X-Datasheet.pdf

BOK-100-9001-F_owa4X-Product-Variants.pdf
