MICO1GEU868

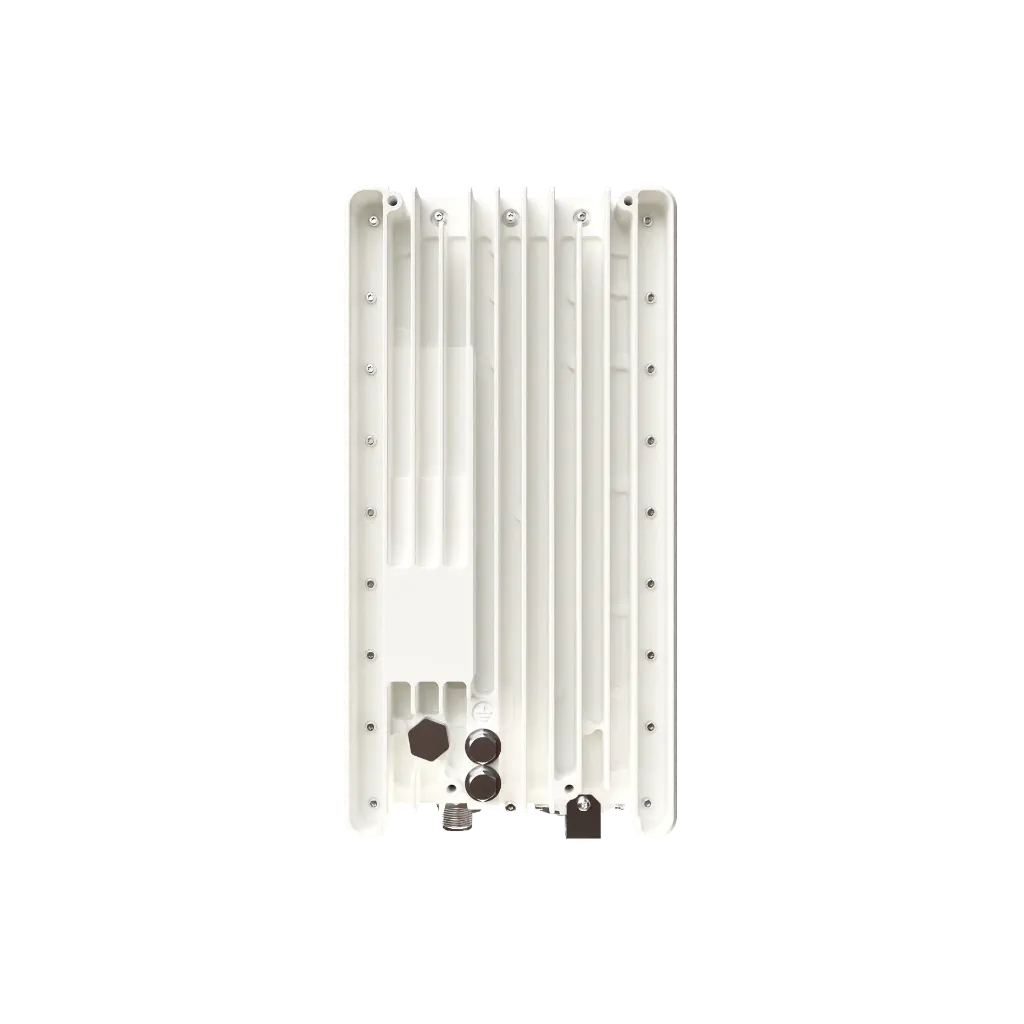

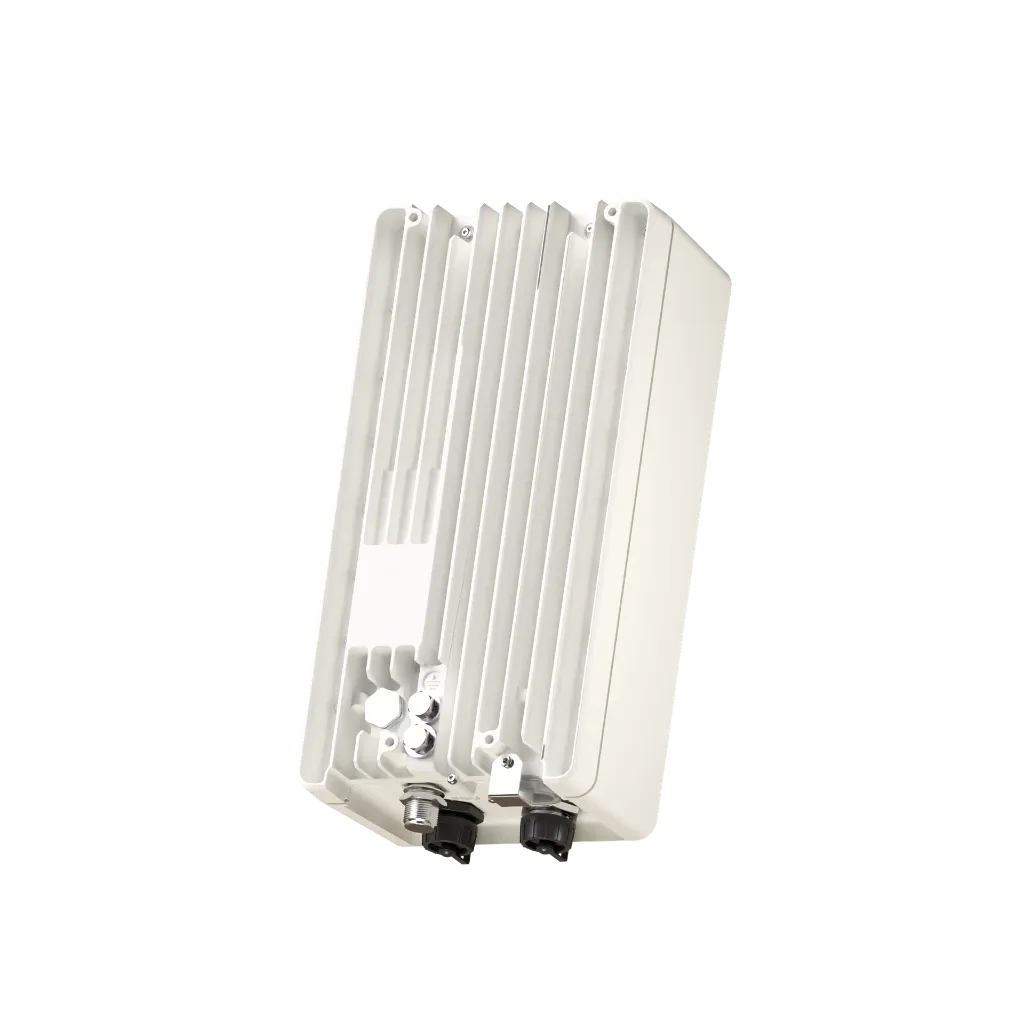

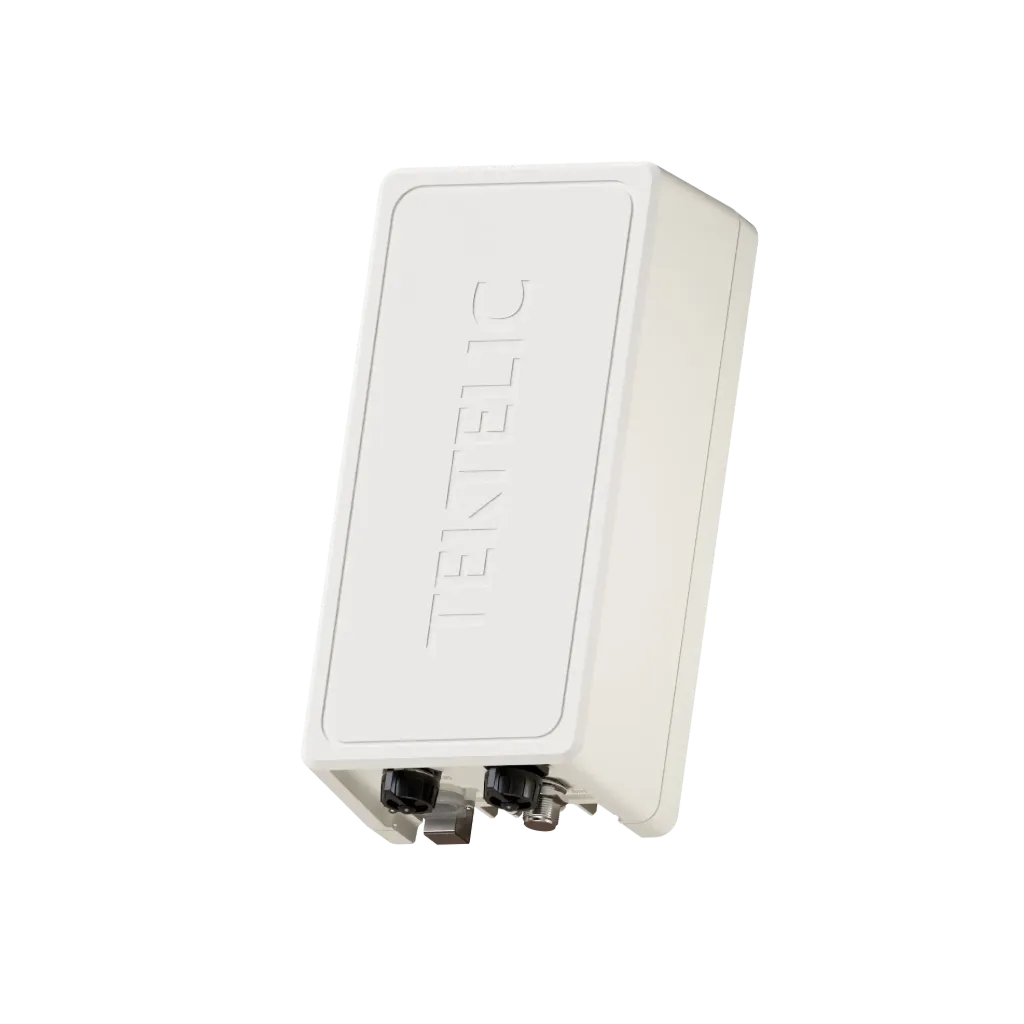

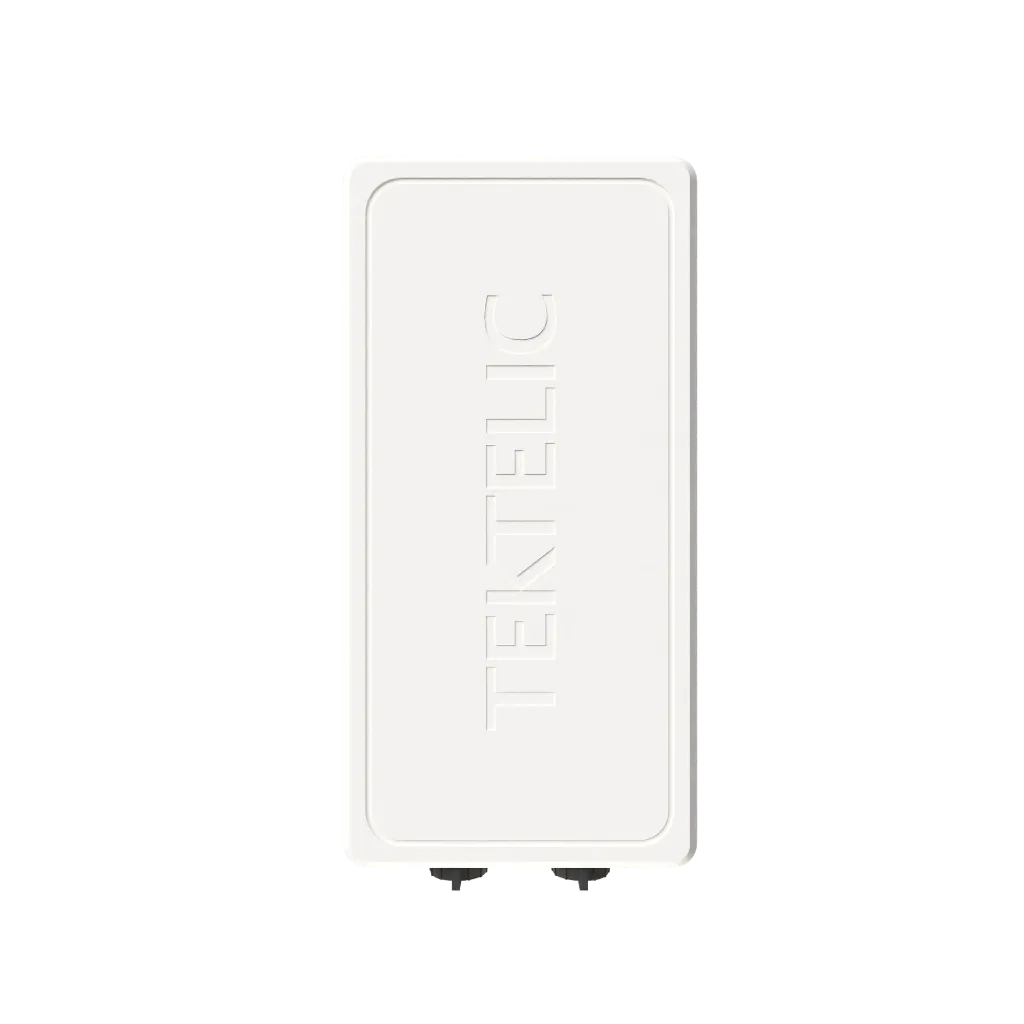

The TEKTELIC KONA Macro (MICO1GEU868-J) is a hardened outdoor LoRaWAN gateway designed for wide-area network deployments where harsh environmental conditions and long-distance coverage are required. This Ethernet-only EU868 TDD variant supports the full range of LoRaWAN channels and connects to an external N-Type LoRa antenna (sold separately) for flexible installation across dense urban or rural environments. Built around a robust UL Type 6 / IP67 enclosure with primary lightning surge protection on all interfaces (DC, Ethernet and RF), it operates reliably from −40 to +60 °C including solar loading. Powered via PoE 802.3at Type 2 Class 4 or direct 48 VDC input, with 20 W maximum consumption. Internal GPS provides precise time synchronization and geolocation. Mounting bracket and hardware are supplied for pole or wall installation.

Note: Other regional channel plans (US915, AU915, AS923, IN865, BR915, SN923) are available on request — please contact us for a quote.

Note: A LoRa antenna with N-Type male connector is required for operation and is sold separately.

Note: Professional installation by trained RF technicians is required. The gateway must be properly earth-grounded before any other interface is connected.

Add to cart
Add to wishlist
Price
1,644.00 € 1,644.00 € (Tax excluded)
1,644.00 € (Tax excluded)

Terms and Conditions
Contact Us
Key features Technical Specs Documentation

Key features

LoRaWAN EU868 TDDTime-division duplex · external N-Type LoRa antenna
Hardened outdoor IP67UL Type 6 enclosure · pole or wall mount · −40 to +60 °C
Lightning protectionPrimary surge suppression on all interfaces · DC, Ethernet, RF
Built-in GPSInternal GPS antenna · time sync & geolocation support
Flexible powerPoE 802.3at Class 4 or direct 48 VDC · 20 W max consumption
Carrier-grade reliabilityCSA/UL/CE 62368-1 · FCC Pt. 15 · RSS-247 · EN 301 489-1


Technical Specs

Channel planEU868 (other plans available on request)
ModeTime-division duplex (TDD)
AntennaExternal LoRa antenna required (sold separately)
Antenna connectorN-Type female · 50 Ω
Maximum antenna gain8 dBi (omnidirectional)


Ethernet backhaulRJ-45 (threaded circular weatherproof connector)
Cellular backhaulNot equipped (LTE variant available on request)
GPSInternal antenna · time synchronization & geolocation
LoRa antenna portN-Type female (water-tight when mated)
Direct DC power2-pin CPC threaded circular connector
Earth groundTwo-hole lug · ¼ × 0.75″ spacing


PoE inputIEEE 802.3at Type 2 Class 4 · Mode A/B/4-pair
Direct DC input48 VDC nominal (37–57 VDC operating range)
DC sourceSELV-compliant · positive or negative ground reference
Overcurrent protection5 A recommended (2 A min · 10 A max external)
Power consumption20 W maximum


ManagementAccess control · radio configuration · remote upgrades
Image managementActive & passive image management · in-service updates
Remote accessSSH (port 22) · SNMPv3 (161) · HTTPS (443) · mDNS (5353) · ICMP
NetworkingDHCPv4 client · TFTP server · HTTP server · firewall · ACLs
OnboardingTEKTELIC LeapX application · plug-and-play deployment


Dimensions144 × 92 × 283 mm (W × D × H)
Weight2.68 kg
Operating temperature−40 °C to +60 °C (including solar loading at sea level)
Relative humidity10–100%
Operating altitude−60 m to 4 000 m
Weather tightnessUL Type 6 (IP67)
MountingPole or wall (bracket and M6 bolts supplied · M8 site-supplied for wall)
Surge protectionPrimary lightning suppression on all interfaces



Other channel plans: This product page covers the EU868 variant. Versions for US915, AU915, AS923 (variants 1–4), JP923, IN865, BR915 and SN923 channel plans are available on request — please contact us for a quote.


External LoRa antenna: A LoRa antenna with N-Type male connector is required for operation and is sold separately. Maximum antenna gain is 8 dBi for omnidirectional types.


Installation requirements: Professional installation by trained RF technicians is required. The gateway must be properly earth-grounded (¼″ two-hole lug) before any other interface is connected. Mounting structure must support a dead load of at least 136 kg.


Documentation

KONA Macro Gateway Product Page (Tektelic)

KONA Macro Gateway User Guide (PDF)
