MACO2NEU868

Name: MACO2NEU868
Price: 2958.0 EUR
Availability: InStock

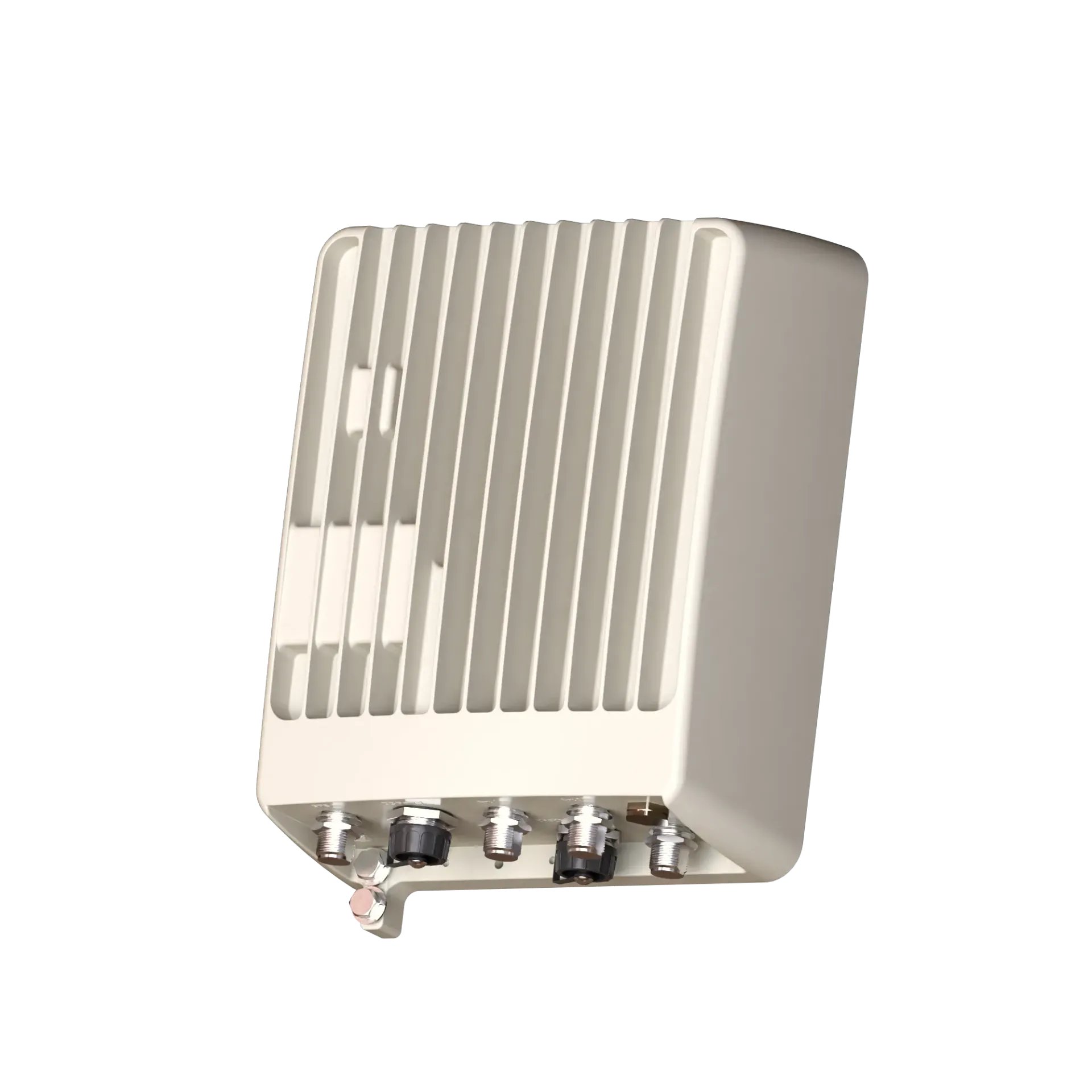

The TEKTELIC KONA Mega (MACO2NEU868-J) is a high-capacity outdoor LoRaWAN gateway designed for public and private network operators deploying large-scale or high-density networks. This Ethernet-only EU868 TDD variant provides 32 + 4 Rx and 4 Tx channels with double simultaneous Tx capability — supporting millions of Rx messages per day. Two N-Type LoRa antenna ports enable Rx diversity, improving end-device SNR and link budget while extending sensor battery life. The built-in High-Q RF cavity filter delivers 75 dB Tx-to-Rx isolation and strong out-of-band rejection — critical in dense RF environments where cellular and adjacent-band interference would otherwise degrade gateway performance. Housed in a hardened aluminium IP67 enclosure with surge protection on all interfaces (DC, Ethernet, GPS, LoRa RF), it operates from −40 to +60 °C. Powered via PoE 802.3bt or direct 48 VDC input (20 W typical), with integrated GPS holdover for resilient time synchronization.

Note: Other regional channel plans (US915, AU915, AS923 Singapore/Japan, BR915) are available on request — please contact us for a quote.

Note: Two LoRa antennas with N-Type male connectors are required to leverage Rx diversity (sold separately, max 8 dBi gain). A GPS antenna is also required and sold separately.

Note: Professional installation by trained RF technicians is required. The gateway must be properly earth-grounded before any other interface is connected.

Terms and Conditions

Key features

High capacity LoRaWANEU868 TDD · 32 + 4 Rx / 4 Tx · double simultaneous Tx channels

Dual antenna · Rx diversity2× LoRa antenna ports · improved SNR · better link budget

High-Q cavity filter75 dB Tx-Rx isolation · strong out-of-band rejection · cellular immunity

Carrier-grade outdoorHardened aluminium IP67 · −40 to +60 °C · UL Type 6

GPS with holdoverExternal GPS antenna · precise time sync · geolocation support

Lightning protectionSurge suppression on all interfaces · DC, Ethernet, GPS, LoRa RF

Technical Specs

LoRa radio

Channel plan	EU868 (863–870 MHz, other plans available on request)
Mode	Time-division duplex (TDD)
Architecture	32 + 4 Rx / 4 Tx · double simultaneous Tx channels
Tx power	2 × 14 dBm per antenna
Rx sensitivity	−142 dBm (SF12, 293 bits/s)
Rx noise figure	3.5 dB
Rx linearity	−10 dBm
Rx dynamic range	70 dB analog · 100+ dB digital
Tx-to-Rx isolation	75 dB
RF filtering	High-Q cavity filter (built-in)
LoRa antenna ports	2 × N-Type female (Rx diversity)
Maximum antenna gain	8 dBi (omnidirectional)

Backhaul & interfaces

Ethernet backhaul	RJ-45 (CPC weatherproof connector)
Cellular backhaul	Not equipped (LTE variant available on request)
GPS	External GPS antenna (N-Type female) · holdover supported
LoRa antenna ports	2 × N-Type female (Antenna 0 + Antenna 1)
Direct DC power	2-pin CPC weatherproof connector
Earth ground	Two-hole lug · ¼ × 0.75″ spacing
Status indicator	Multi-color LED

Power supply

PoE input	IEEE 802.3bt (PoE++) · Mode A + Mode B (4-pair)
Direct DC input	48 VDC nominal (37–57 VDC operating range)
DC source	SELV / LPS compliant · positive or negative ground reference
Overcurrent protection	10 A maximum (external)
Power consumption	20 W typical · 40 W maximum

Software & management

Management	Access control · radio configuration · remote upgrades
Image management	Active & passive image management · in-service updates
Remote access	SSH (port 22) · SNMPv3 (161) · HTTPS (443) · mDNS (5353) · ICMP
Networking	DHCPv4 client · TFTP server · HTTP server · firewall · ACLs
Onboarding	Kona Link tool · factory image provisioning

Mechanical & environmental

Dimensions	222 × 268 × 101 mm (body) · 222 × 287 × 101 mm (with connectors)
Weight	5.1 kg
Volume	6 L
Operating temperature	−40 °C to +60 °C (including solar loading at sea level)
Relative humidity	10–100%
Operating altitude	−60 m to 4 000 m
Weather tightness	UL Type 6 (IP67)
Enclosure material	Hardened aluminium
MTBF	450 000 hours
Mounting	Pole or wall (bracket and M6 bolts supplied · M8 site-supplied for wall)
Surge protection	Primary lightning suppression on all interfaces

Other channel plans: This product page covers the EU868 variant. Versions for US915, AU915, AS923 (Singapore and Japan) and BR915 channel plans are available on request — please contact us for a quote.

External antennas: Two LoRa antennas with N-Type male connectors are required to leverage Rx diversity (sold separately, max 8 dBi gain). A GPS antenna with N-Type male connector is also required for time synchronization and is sold separately.

Installation requirements: Professional installation by trained RF technicians is required. The gateway must be properly earth-grounded (¼″ two-hole lug) before any other interface is connected. Mounting structure must support a dead load of at least 136 kg.
