STORK

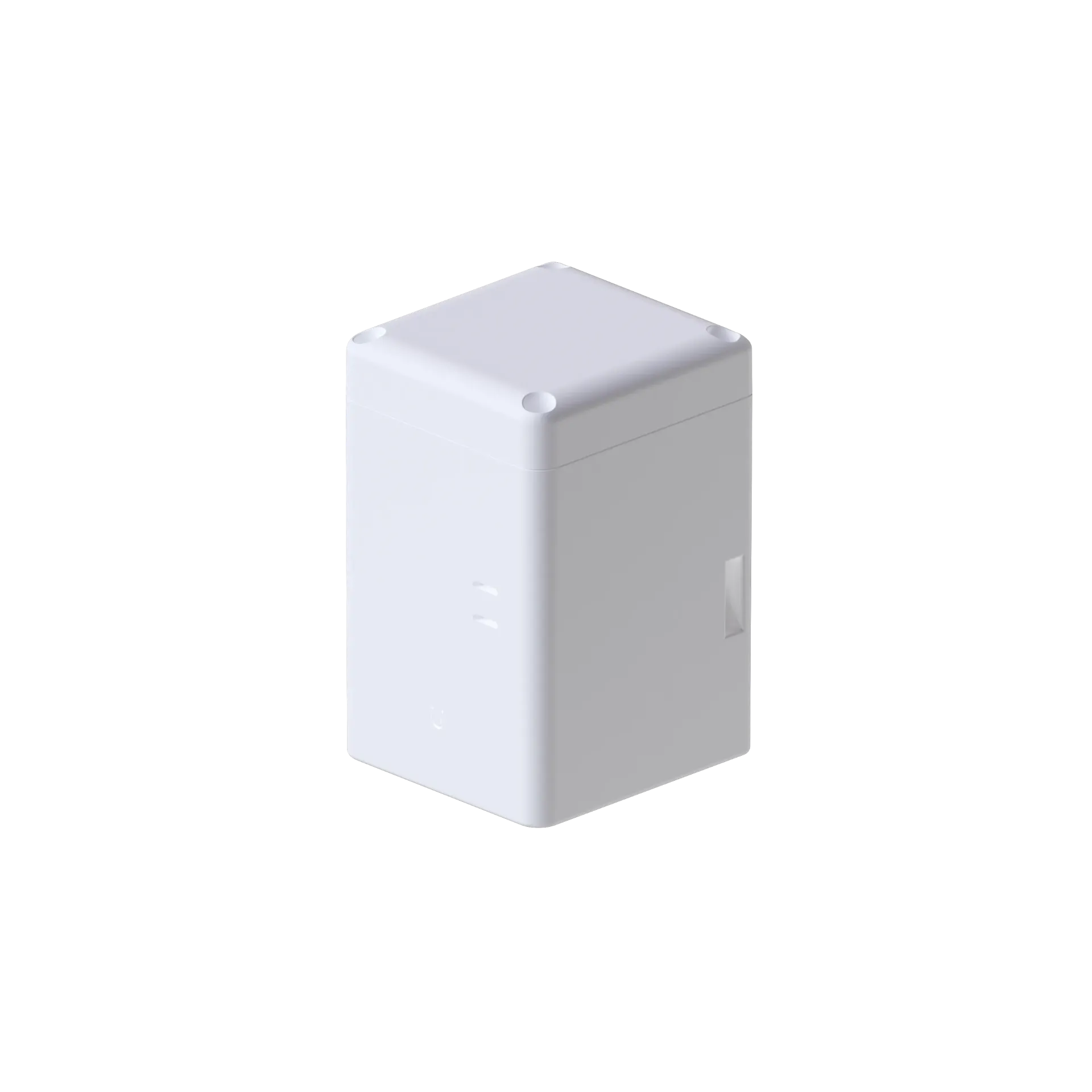

The TEKTELIC STORK (STORKBEU868) is a rugged, long-life LoRaWAN asset tracker designed for tracking pallets, vehicles, machinery, and equipment in any environment. Powered by the Semtech LoRa Edge™ LR1110 transceiver, STORK delivers three complementary positioning technologies in a single device — low-power GNSS for outdoor positioning, BLE scanning for indoor beacon-based localization, and Wi-Fi sniffing for indoor positioning where Wi-Fi networks are available. The IP67 enclosure operates from −40 to +70 °C and supports installation via two-sided clips with both soft-lock (releasable) and hard-lock (permanent) options. Onboard accelerometer triggers more frequent geolocation updates when the asset is in motion, and ambient temperature and humidity are continuously monitored. Optional 12 V external power input supports vehicle-mounted deployments. Beacon mode enables the device to be discovered by other STORKs or BLE-capable devices. Powered by a single C-cell LTC battery for 5+ years of operation. Integrates with TEKTELIC LOCUS for visualization and supports open API for third-party platforms.
Price
125.51 € 125.51 €
125.51 €
(Tax excluded)
Terms and Conditions
Key features Technical Specs Documentation

Key features

Triple positioningGNSS + BLE + Wi-Fi sniffing · LoRa Edge™ LR1110
Rugged IP67−40 to +70 °C · two-sided clip mount (soft/hard lock)
Motion-aware reportingAccelerometer · faster updates when moving
5+ years batteryC-cell LTC · optional 12 V external power
LoRaWAN + BLE modesEU868 Class A · tracker or beacon operation
Ambient sensingTemperature + humidity reporting


Technical Specs

Outdoor positioningLow-power GNSS · LR1110 transceiver
Indoor positioning (BLE)BLE scanning for beacon-based localization
Indoor positioning (Wi-Fi)Wi-Fi sniffing for AP-based localization
Operating modesTracker mode (positioning) · Beacon mode (BLE Tx)
Accelerometer3-axis · motion detection · accelerometer assist for adaptive reporting
Ambient sensorsTemperature and relative humidity
Geolocation scansUp to 3 scans per cycle · configurable strategy


LoRaWAN radioEU868 (863–870 MHz) · Class A
ModulationLoRa and (G)FSK · LoRaWAN L2 1.0.4
AntennaInternal
BatteryC-cell LTC · user-replaceable
Battery life5+ years (configuration dependent)
External powerOptional 12 V DC input (External Power variant)
Other regions availableUS915, AU915, AS923, IN865, KR920


OnboardingQR-based activation via TEKTELIC LeapX app · magnet wake from deep sleep
VisualizationTEKTELIC LOCUS application for asset visualization
Remote configurationOTA via LoRaWAN downlinks · ATLAS or LeapX
Scan strategyConfigurable FALLBACK order: GNSS, Wi-Fi, BLE priorities
IntegrationOpen API · compatible with TTN, ChirpStack, Helium, Loriot and others


Operating temperature−40 °C to +70 °C
Ingress protectionIP67
MountingTwo-sided clip bracket · soft-lock (releasable) or hard-lock (permanent)
Form factorCompact rugged enclosure · suitable for pallets and equipment
ComplianceCE · LoRaWAN certified



Other regions: This product page covers the EU868 variant. Versions for US915, AU915, AS923, IN865 and KR920 channel plans are available on request.


Activation: STORK ships in DEEP SLEEP. A magnet (not included) is required to wake the device for first deployment.


Use cases: Construction equipment tracking · warehouse pallet tracking · manufacturing asset tracking · multi-building campus asset visibility · vehicle and trailer tracking · cold chain logistics (above −40 °C).


Wi-Fi sniffing: STORK captures Wi-Fi AP MAC addresses and RSSI but does not connect to networks. This data is forwarded to a geolocation service (e.g., LoRa Cloud) for position resolution.


Optional 12 V power: An External Power variant accepts 12 V DC input for vehicle-mounted deployments with permanent power.


Documentation

STORK Asset Tracker Product Page (Tektelic)

STORK User Guide (PDF)
