SEALBEU868

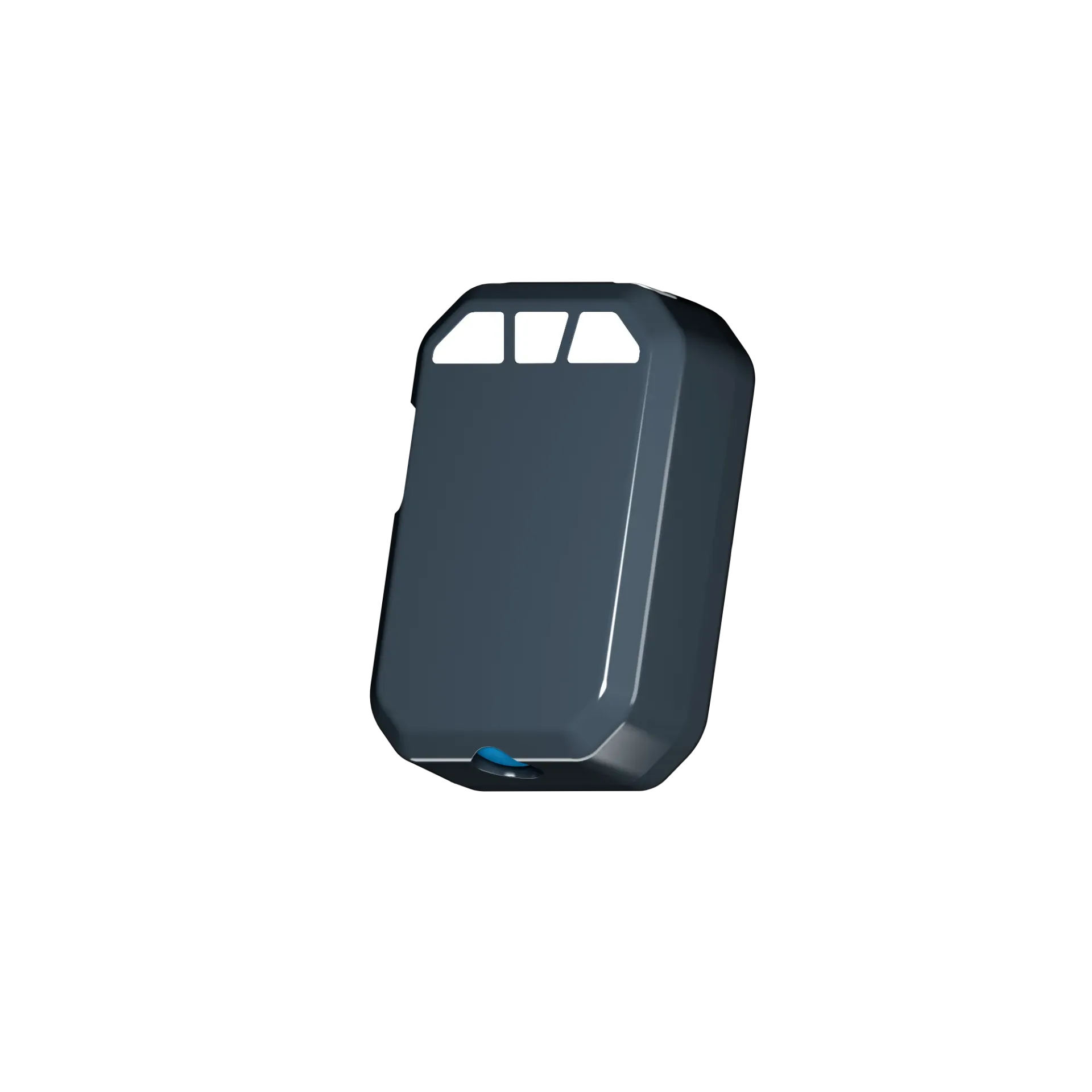

The TEKTELIC SEAL (SEALBEU868) is a light, compact LoRaWAN wearable GPS tracker designed for personnel safety in industrial work sites, lone-worker environments, and hazardous areas. The IP67 rugged enclosure houses a high-sensitivity multi-constellation GNSS receiver (GPS, GLONASS, Galileo, BeiDou), Bluetooth Low Energy for continued tracking indoors, a 3-axis MEMS accelerometer for fall and impact detection, and a digital barometric pressure sensor for elevation detection. Safety features include an integrated panic/SOS button, audio and visual alarms (buzzer and LEDs), geofencing capabilities, and event-based startup that increases reporting when activity is detected. The non-clip variant is designed for wear on a lanyard or belt. Powered by 3× AA Energizer Ultimate Lithium batteries for 8–15 months of operation depending on configuration. LoRaWAN Class A radio operates at up to 23 dBm Tx with −137 dBm sensitivity for long-range coverage.
Price
255.34 € 255.34 €
255.34 €
(Tax excluded)
Terms and Conditions
Key features Technical Specs Documentation

Key features

Personnel safetyFall detection · elevation detection · panic button
GNSS + BLEGPS, GLONASS, Galileo, BeiDou outdoor · BLE for indoor
Audio & visual alarmsBuzzer + LEDs · local emergency indication
Rugged IP67Designed for harsh industrial environments
LoRaWAN EU868Class A · 23 dBm Tx · −137 dBm sensitivity · long range
8–15 months battery3× AA Energizer Ultimate Lithium · user-replaceable


Technical Specs

Panic / SOS buttonPush button on enclosure · triggers emergency uplink
Fall detectionVia 3-axis MEMS accelerometer
Elevation detectionVia barometric pressure sensor
Audio alarmIntegrated buzzer for local indication
Visual alarmTwo sets of LEDs (top and front) · emergency, low battery, status
Mute buttonManual silence of audio alarm
GeofencingConfigurable boundaries with alerts
Event-based startupAutomatic reporting on movement or alarm trigger


GNSS constellationsGPS, GLONASS, Galileo, BeiDou
Indoor positioningBLE-assisted via beacons
Accelerometer3-axis MEMS · fall and impact detection
Barometric pressureElevation detection
Battery indicatorRemaining battery level reporting


LoRaWAN radioEU868 (863–870 MHz) · Class A
RF transmit powerUp to 23 dBm
RF sensitivity−137 dBm (SF12, 125 kHz)
BLEBluetooth Low Energy for indoor tracking
AntennaInternal
Battery3× AA Energizer Ultimate Lithium (L91) · user-replaceable
Battery life8–15 months (configuration dependent)
Other regions availableUS915, AU915, AS923, IN865, KR920


Operating temperature−20 °C to +50 °C
Ingress protectionIP67
VariantNon-clip · for lanyard, belt or harness wear
Form factorWearable industrial form factor
ComplianceCE · LoRaWAN certified



Other regions: This product page covers the EU868 variant. Versions for US915, AU915, AS923, IN865 and KR920 channel plans are available on request.


Activation: SEAL ships in DEEP SLEEP with batteries installed. It is activated via a button pattern. See the user guide for activation instructions.


Battery: Use only Energizer L91 Ultimate Lithium AA size 1.5 V lithium iron disulfide batteries for proper operation.


Use cases: Lone worker safety · industrial work sites · construction · oil and gas · mining · security personnel · hazardous environment monitoring.


ATEX variant: For installations requiring ATEX/IECEx certification in explosive atmospheres, see the SEAL Ex Zone 1 variant.


Clip variant: A variant with harness clip detection is also available (triggers local alarm if clip is disconnected).


Documentation

SEAL Wearable GPS Tracker Product Page (Tektelic)

SEAL User Guide (PDF)
