INDTBEU868

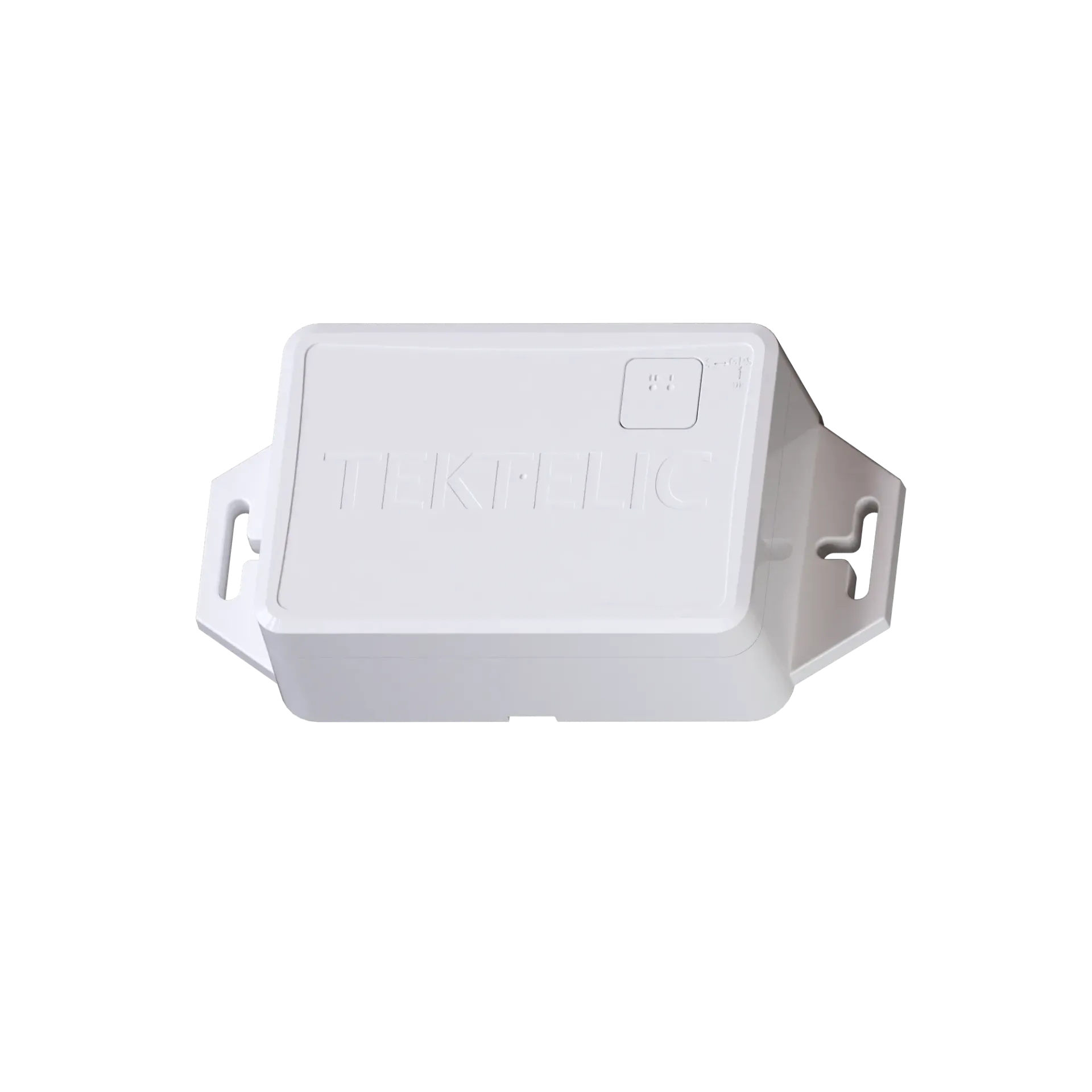

The TEKTELIC ORCA (INDTBEU868) is a multi-purpose LoRaWAN IoT industrial asset tracker designed for geolocating fixed and mobile assets in demanding outdoor environments — shipping containers, railcars, fleet vehicles, industrial equipment, and remote field assets. The rugged IP67 enclosure operates from −40 to +85 °C and houses a high-sensitivity multi-constellation GNSS receiver (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS) for accurate outdoor positioning, Bluetooth Low Energy for optional indoor tracking via BLE beacons, and a 3-axis accelerometer enabling event-based startup that triggers GPS updates only when the asset is in motion. Up to 4 configurable geofences enable boundary-based alerts. Flash storage logs historical position data for retrieval when out of LoRaWAN coverage. Powered by 2× D-cell batteries for 8–10 years of operation. Integrates with the TEKTELIC LOCUS application for visualization and provides an open API for third-party RTLS platforms.
Price
190.40 € 190.40 €
190.40 €
(Tax excluded)
Terms and Conditions
Key features Technical Specs Documentation

Key features

Multi-constellation GNSSGPS · GLONASS · Galileo · BeiDou · QZSS · SBAS
Rugged IP67−40 to +85 °C · industrial enclosure · 2 kg max mount
LoRaWAN + BLEEU868 Class A · BLE Rx for indoor positioning
8–10 years battery2× D-cell · user-replaceable · battery level reporting
Event-based startupAccelerometer triggers updates · saves battery when stationary
Geofencing & loggingUp to 4 geofences · flash storage for offline data


Technical Specs

GNSS constellationsGPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
BLEBluetooth 5.0 Rx (scan only · not advertising)
Accelerometer3-axis · motion detection · event-based startup
GeofencesUp to 4 configurable boundaries
Data loggingFlash storage for historical position data
Reporting modesPeriodic and event-triggered uplinks
Battery indicatorRemaining battery level reporting


LoRaWAN radioEU868 (863–870 MHz) · Class A
RF transmit powerUp to 16 dBm (region-dependent)
AntennaInternal
Battery2× D-cell LTC · user-replaceable
Battery life8–10 years (configuration dependent)
Other regions availableUS915, AU915, AS923, IN865, KR920


OnboardingQR-based activation via TEKTELIC LeapX app · magnet wake from deep sleep
VisualizationTEKTELIC LOCUS application for asset tracking
Remote configurationOTA via LoRaWAN downlinks
Configurable parametersReporting intervals ("ticks") · GNSS scan settings · geofences
IntegrationOpen API · compatible with TTN, ChirpStack, Helium, Loriot and others


Operating temperature−40 °C to +85 °C
Ingress protectionIP67
Mount surface capacity> 2 kg
Form factorRugged industrial enclosure with mounting holes
ComplianceCE · FCC · ISED · LoRaWAN certified



Other regions: This product page covers the EU868 variant. Versions for US915, AU915, AS923, IN865 and KR920 channel plans are available on request.


Activation: ORCA ships in DEEP SLEEP. A magnet (e.g. Standex-Meder M4, M5, or M13) is required to activate the device. Magnet is not included.


Use cases: Shipping container tracking · railcar monitoring · industrial transport · fleet vehicle tracking · industrial equipment management · preventive maintenance scheduling.


Documentation

ORCA Industrial GPS Asset Tracker Product Page (Tektelic)

ORCA User Guide (PDF)
