MITX3LEU868

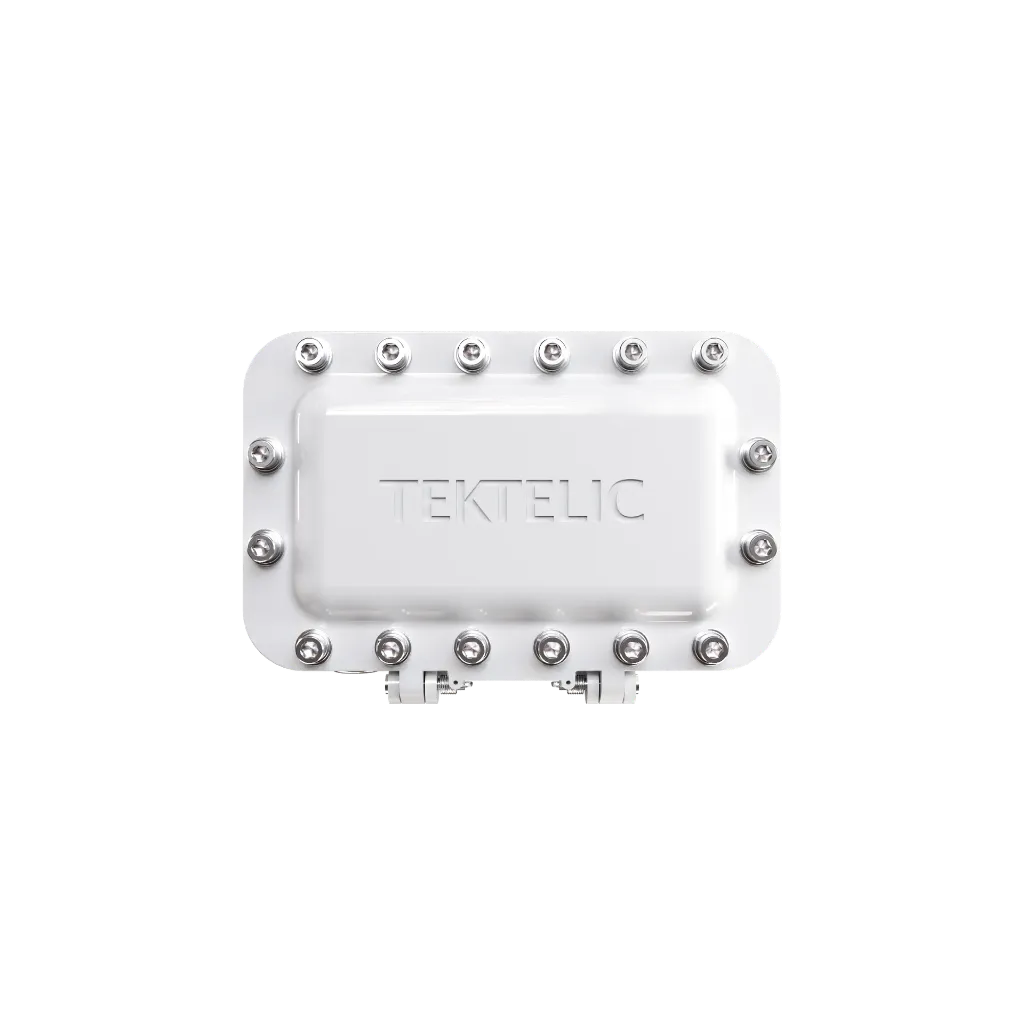

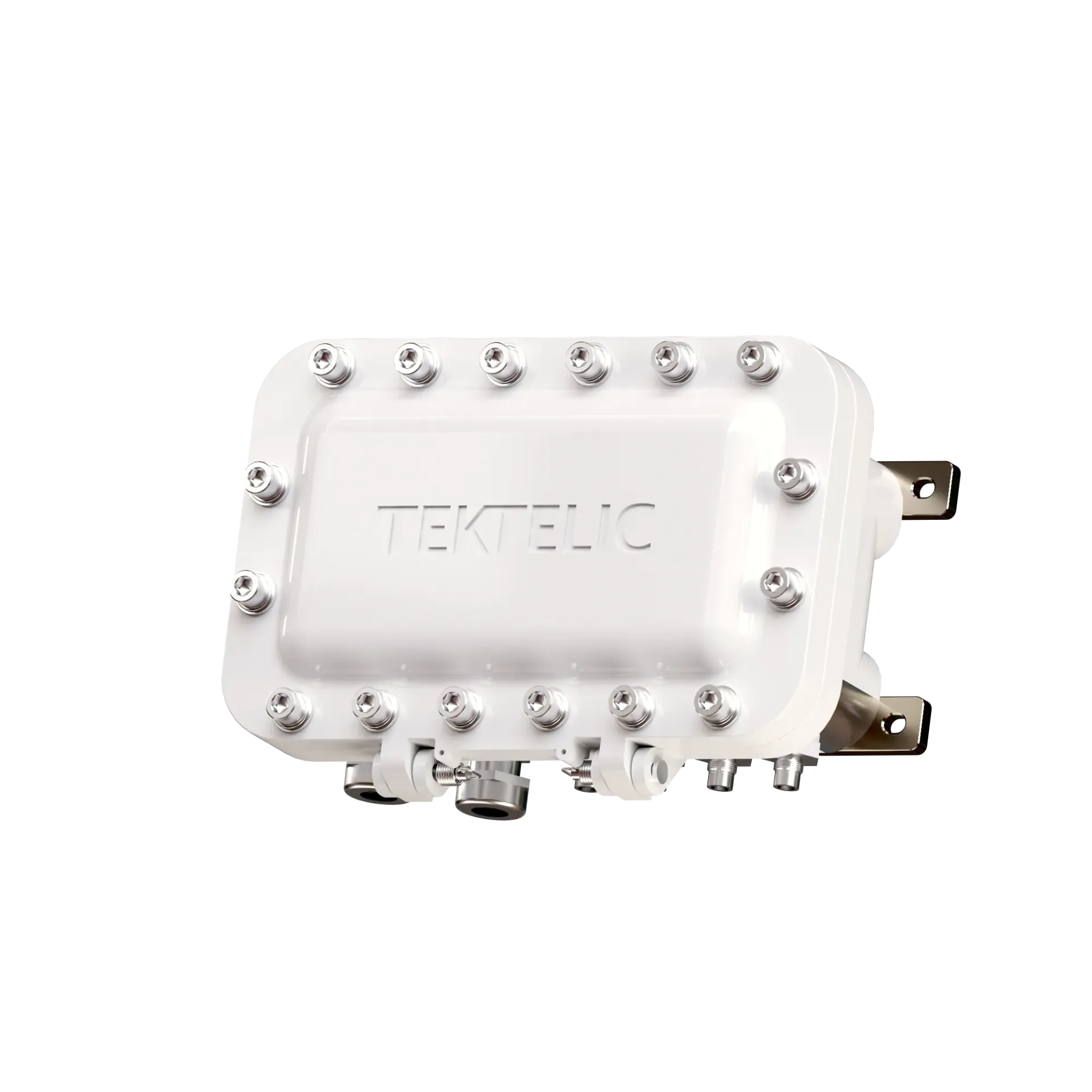

The TEKTELIC KONA Macro Ex (MITX3LEU868) is the most heavily certified outdoor LoRaWAN gateway in the KONA range, designed for installation directly inside hazardous areas — ATEX Zone 1 (gas), Zone 21 (dust), IECEx, and Class I/II Division 1 classified locations such as oil & gas pipelines, refineries, chemical processing plants, mining sites, and grain handling facilities. This EU868 TDD LTE variant ships with a 2.5 dBi LoRa antenna kit and provides 16 Rx and 2 Tx channels at 27 dBm Tx power and −142 dBm Rx sensitivity, with dual antenna ports for Main and Diversity reception. The integrated highly selective adaptive cavity bandpass filters deliver 75 dB Tx-to-Rx isolation and exceptional out-of-band rejection, while the enhanced radio design extends coverage in challenging RF environments. Built around a custom 4X / IP66 enclosure optimized for airflow and heat dissipation, it operates from −40 to +60 °C. Powered via PoE+ (802.3at) or direct 48 VDC terminal block (15 W max), with built-in LTE backhaul, GPS holdover, and rugged M25 cable glands.

Note: Other regional channel plans are available on request — please contact us for a quote.

Note: This bundle includes a 2.5 dBi LoRa antenna kit. For maximum permitted gain (6 dBi) deployments, see the MITX6LEU868 variant.

Note: The integrated LTE modem requires a SIM card with active data subscription — not included. A GPS antenna and LTE antenna are sold separately.

Note: This gateway is certified for use in ATEX Zone 1 / 21, IECEx, and Class I/II Division 1 classified locations. Installation must comply with applicable hazardous area standards and be performed by qualified personnel.

Add to cart
Add to wishlist
Price
12,039.66 € 12,039.66 € (Tax excluded)
12,039.66 € (Tax excluded)

Terms and Conditions
Contact Us
Key features Technical Specs Documentation

Key features

ATEX Zone 1 · Class I Div 1Highest hazardous area rating · gases, vapors and combustible dusts
Dual antenna · Rx diversity16 Rx / 2 Tx · 27 dBm Tx · main + diversity N-Type ports
Adaptive cavity filter75 dB Tx-Rx isolation · low-noise figure · enhanced radio design
Hardened outdoor IP66Custom Ex enclosure · −40 to +60 °C · 4X / IP66 rated
GPS with holdoverExternal GPS antenna · precise time sync · geolocation support
Integrated 4G LTEBuilt-in cellular modem · backhaul or failover · external N-Type antenna


Technical Specs

Channel planEU868 TDD (other plans available on request)
Architecture16 Rx / 2 Tx · time-division duplex
Tx power27 dBm
Rx sensitivity−142 dBm (SF12, 293 bits/s)
Rx noise figure3.5 dB
Rx linearity−10 dBm
Rx dynamic range70 dB analog · 100+ dB digital
Tx-to-Rx isolation75 dB
RF filteringHighly selective adaptive cavity bandpass filters
Radio designLow noise figure · low LO phase noise · DSP optimization
LoRa antenna ports2 × N-Type female (Main + Diversity)


Ethernet backhaulRJ-45 with M25 × 1.5 cable gland · IEEE 802.3at PoE
Cellular backhaulIntegrated LTE modem · external N-Type antenna port
GPSExternal GPS antenna (N-Type female) · holdover supported
LoRa antenna ports2 × N-Type female (Main + Diversity)
Direct DC power48 V terminal block with M25 × 1.5 cable gland
Earth groundExternal Protective Earth Ground (PEG) connection


PoE inputIEEE 802.3at (PoE+)
Direct DC input48 VDC nominal · 48 V terminal block
Power consumption14 W (typical)


ManagementAccess control · radio configuration · remote upgrades
Image managementActive & passive image management · in-service updates
Remote accessSSH (port 22) · SNMPv3 (161) · HTTPS (443) · mDNS (5353) · ICMP
NetworkingDHCPv4 client · TFTP server · HTTP server · firewall · ACLs
OnboardingKona Link tool · factory image provisioning


Hazardous zonesZone 1 (gas) · Zone 21 (dust) · Class I Div 1
ATEX marking (gas)II 2 G Ex db [ia Ga] IIB+H2 T6 Gb
ATEX marking (dust)II 2 D Ex tb [ia Da] IIIC T85°C Db
IECEx marking (gas)Ex db [ia Ga] IIB+H2 T6 Gb
IECEx marking (dust)Ex tb [ia Da] IIIC T85°C Db
CAN/USA Zone (gas)AEx db [ia Ga] IIB+H2 T6 Gb
CAN/USA Zone (dust)AEx tb [ia Da] IIIC T85°C Db
CAN/USA DivisionClass I Div 1 Group B C D T6 · Class II Div 1 Group E F G T85°C
Temperature range−40 °C to +60 °C


Dimensions352 × 247 × 158 mm
Weight15 kg
Volume13.7 L
Operating temperature−40 °C to +60 °C
Relative humidity10–100% (condensing)
Ingress protection4X / IP66
EnclosureCustom design optimized for airflow, heat dissipation and cable management
MTBF850 000 hours
MountingPole or wall (industrial brackets · field-supplied hardware)
Hazardous areaATEX Zone 1 / 21 · IECEx · Class I Div 1 — see certifications



Other channel plans: This product page covers the EU868 variant. Versions for other regional channel plans are available on request — please contact us for a quote.


Cellular backhaul: The integrated LTE modem requires a SIM card with active data subscription — not included.


Bundle includes 2.5 dBi LoRa antenna kit: This product includes the KONA Macro Ex gateway and a 2.5 dBi LoRa antenna kit (Tektelic-assessed simple apparatus per IEC 60079-11). For higher-gain deployments, the MITX6LEU868 variant ships with a 6 dBi antenna kit instead.


Additional antennas: A GPS antenna with N-Type male connector is required for time synchronization, and an LTE antenna with N-Type male connector is required for cellular backhaul (both sold separately). LoRa antenna gain must not exceed 6 dBi; cellular antenna gain must not exceed 2 dBi (EIRP limits per CSA/UL 60079-0).


Hazardous area installation: This gateway is certified for use in ATEX Zone 1 (gas) and Zone 21 (dust), IECEx, and Class I/II Division 1 classified locations. Installation, operation, and maintenance must comply with the applicable hazardous area standards and must only be performed by qualified personnel familiar with explosion-protected equipment.


General installation requirements: Professional installation by trained RF technicians is required. The gateway must be properly earth-grounded before any other interface is connected. At 15 kg, the gateway requires two installers and a mounting structure capable of supporting at least the system weight plus dynamic loads.


Documentation

KONA Macro Ex Gateway Product Page (Tektelic)

KONA Macro Ex Gateway User Guide (PDF)

KONA Macro Ex Spec Sheet (PDF)
