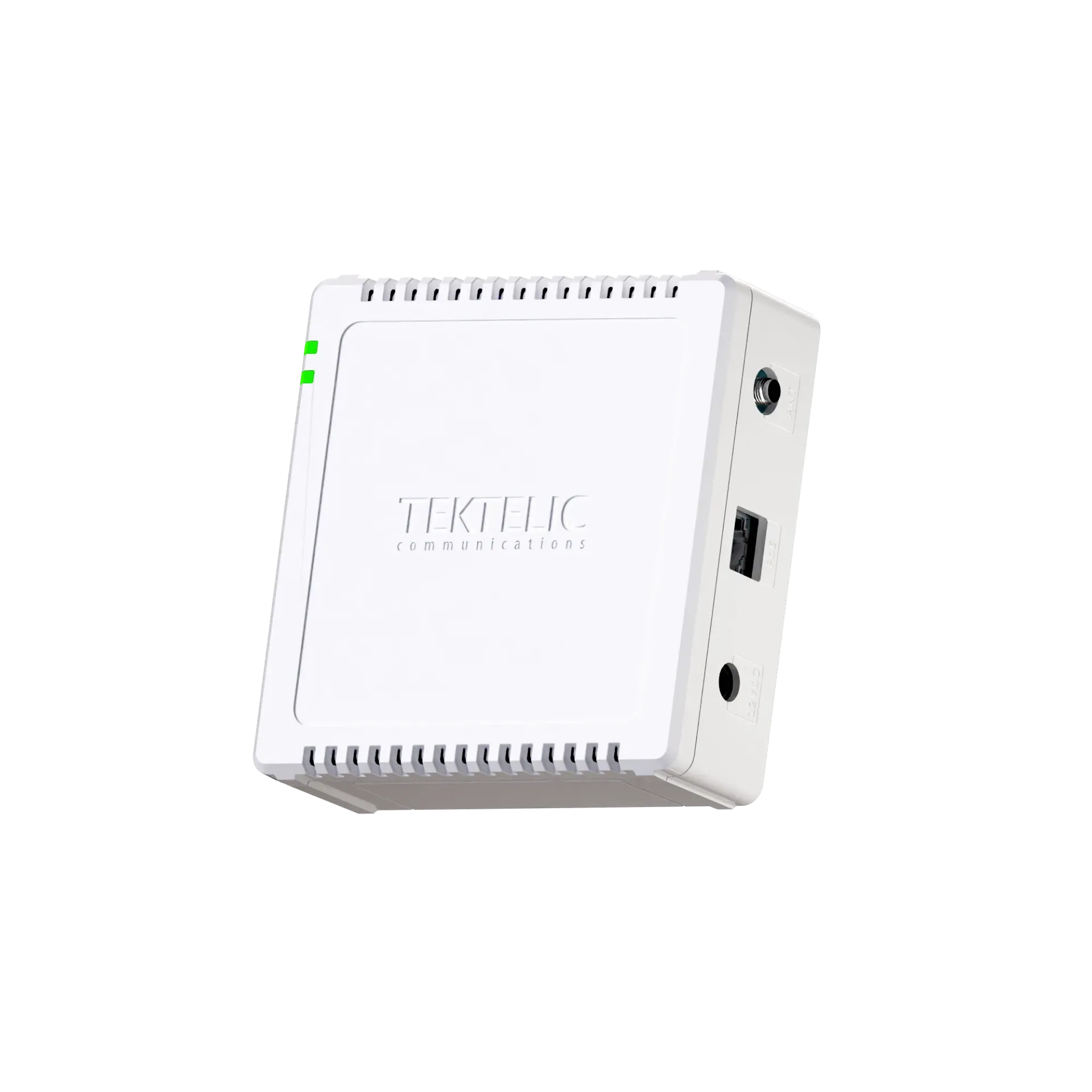

MIG2TLEU868

The TEKTELIC KONA Micro Gen2T (MIG2TLEU868) is a compact indoor LoRaWAN gateway for enterprise and lightweight industrial IoT deployments demanding "always-on" connectivity. This EU868 LTE variant offers 8 Rx / 1 Tx time-duplex architecture, 27 dBm Tx power, and Listen Before Talk for spectrum-efficient European operation. An integrated dual-SIM 4G LTE modem provides cellular backhaul as primary connection or as automatic failover when Ethernet is unavailable. A factory-installed lithium-ion backup battery keeps the gateway running for up to 4 hours during mains power loss — meaning the gateway continues delivering sensor data even when both the network and power are down. It supports 12 VDC or PoE (IEEE 802.3bt Class 3).

Note: Other regional channel plans (US915, AU915, AS923, IN865) are available on request — please contact us for a quote.

Note: The integrated dual-SIM modem requires a 4FF nano-SIM with active data subscription — not included.

Add to cart
Add to wishlist
Price
463.00 € 463.00 € (Tax excluded)
463.00 € (Tax excluded)

Terms and Conditions
Contact Us
Key features Technical Specs Documentation

Key features

LoRaWAN EU868Time-duplex 8 Rx / 1 Tx · 27 dBm Tx power · external antenna
Battery backupUp to 4 hours operation during mains power loss · included
Ethernet backhaulRJ-45 10/100BaseT · 12V DC or PoE 802.3bt
Enterprise-grade reliabilityMTBF 830 000 h · CE/RED · IP30 indoor enclosure
Dual-SIM 4G LTEInternal modem · cellular failover when Ethernet is down · 4FF microSIM
Remote managementSSH · SNMPv3 · HTTPS · in-service updates · Kona Pilot OAM


Technical Specs

Channel planEU868 (other plans available on request)
ArchitectureTime-duplex · 8 Rx / 1 Tx
Tx power14 dBm to 27 dBm
Rx sensitivity−141 dBm (SF12, 293 bits/s)
Rx noise figure3.5 dB
Rx linearity−10 dBm
Rx dynamic range70 dB analog · 100+ dB digital
Listen Before TalkEnabled per regional standards
Antenna connectorReverse SMA female (external antenna included)


Ethernet backhaulRJ-45 · 10/100BaseT
Cellular backhaulIntegrated dual-SIM 4G LTE modem (internal antenna)
LoRa antennaReverse SMA female
Power input12 V DC barrel jack or PoE
Status indicatorMulti-function LED


DC input12 VDC ±10% · 1 A max · barrel jack 2.1/5.5 mm (center positive)
PoE inputIEEE 802.3bt Class 3 (802.3af compatible) · Mode A/B/4-pair
PoE voltage48 VDC nominal (37–57 VDC operating range)
Power consumption2.3 W (Ethernet) · 2.6 W (cellular variant)
AC adapter includedRegion-specific plug (EU/UK or NA/JP)


TypeLithium-ion (replaceable)
Voltage7.4 V
Backup timeUp to 4 hours
ChargingAutomatic when DC/PoE power is connected
IncludedYes (factory-installed)


Network serversTektelic Core NS · ChirpStack · TTN / TTI · Loriot · Semtech UDP
ManagementKona Pilot OAM · KonaFT field tool · LeapX onboarding
Remote accessSSH (port 22) · SNMPv3 (161) · HTTPS (443) · mDNS (5353) · ICMP
NetworkingDHCPv4 client · TFTP server · HTTP server · firewall · ACLs
UpdatesActive & passive image management · in-service updates
ProvisioningFactory image provisioning for mass deployment


Dimensions120 × 118 × 41.5 mm
Weight336 g (with battery) · 245 g (without)
Operating temperature0 °C to +40 °C (without battery) · 0 °C to +38 °C (with battery)
Relative humidity5–95% RH (condensing)
Operating altitude−60 m to 4 000 m
Ingress protectionIP30 (indoor use only)
MTBF830 000 hours

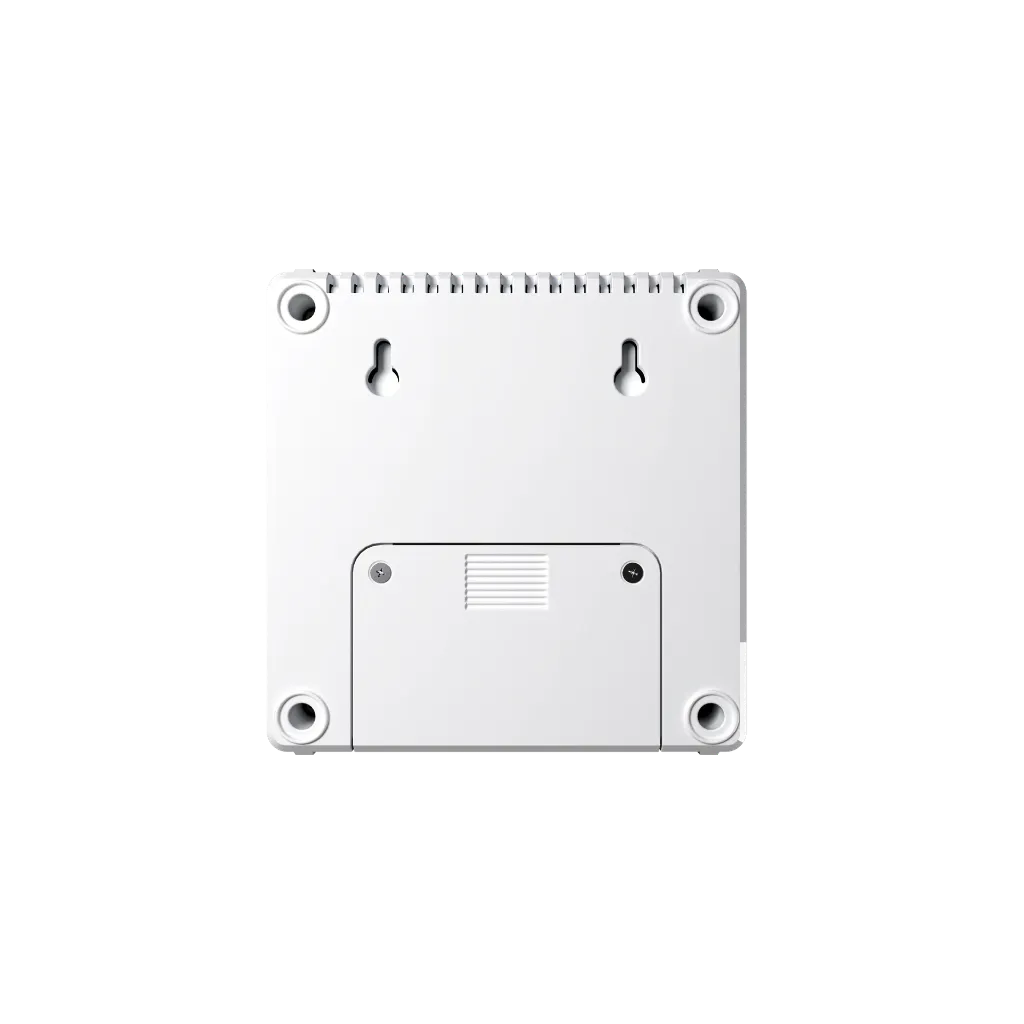

MountingFlat surface or wall (M3 screws · 60 mm spacing)



Other channel plans: This product page covers the EU868 variant. Versions for US915, AU915, AS923 (variants 1–4), JP923 and IN865 channel plans are available on request — please contact us for a quote.


Cellular backhaul: The integrated dual-SIM 4G LTE modem requires a 4FF nano-SIM with active data subscription — not included.


What's in the box: KONA Micro Gen2 gateway · 12 VDC AC adapter (region-specific plug) · LoRa RF antenna · 1 m Ethernet cable · test sheet · getting started guide. Battery is factory-installed.


Documentation

KONA Micro Gen2 Product Page (Tektelic)

KONA Micro Gen2 User Guide (PDF)
