AGRSNNEU868-A

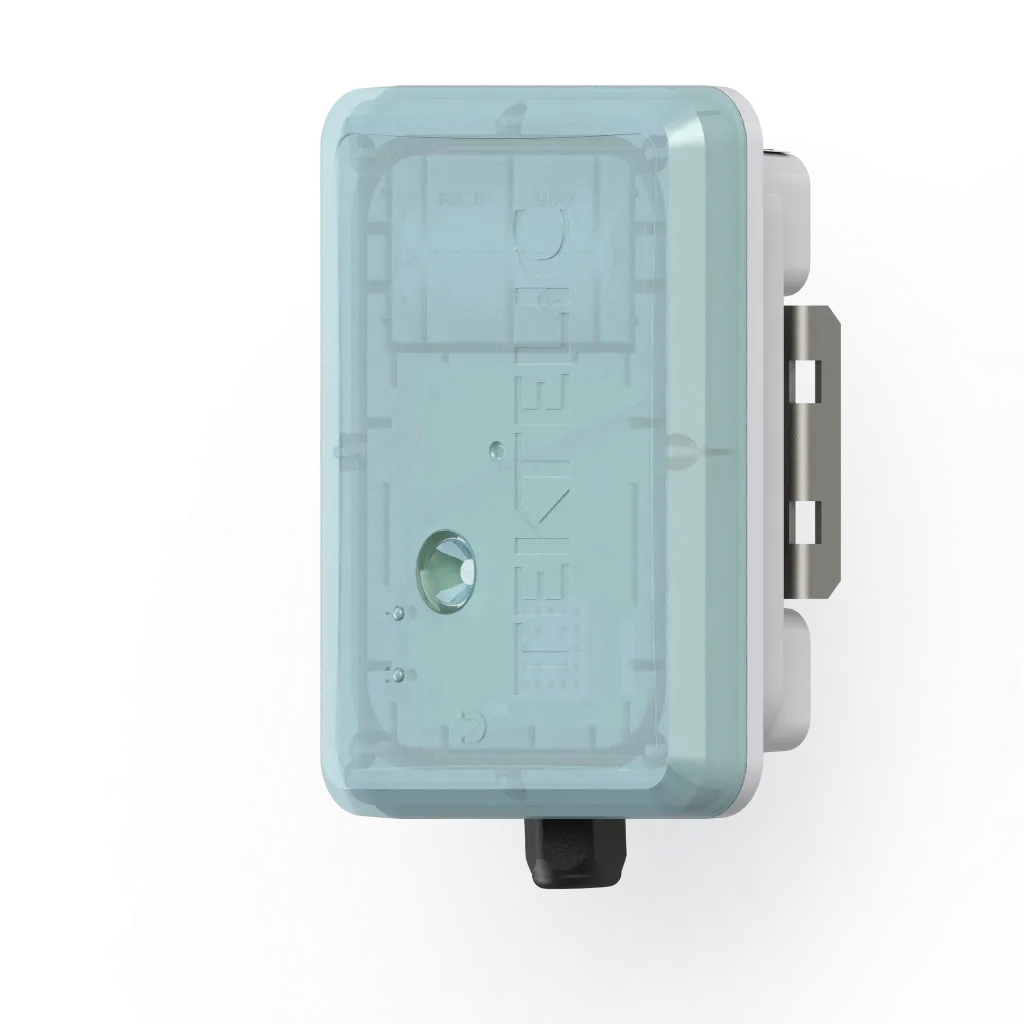

The TEKTELIC KIWI Agriculture Sensor (AGRSNNEU868-A) is a versatile LoRaWAN soil and ambient environment sensor designed for smart agriculture, precision farming, and irrigation management. The rugged IP67 enclosure houses ambient sensors for temperature, humidity, and light (LUX), an onboard accelerometer for orientation and motion detection, and provides 4 analog plus 2 digital external inputs for soil probes — supporting up to 2 Watermark soil water tension probes and up to 2 thermistor temperature probes for measurement across multiple root-zone depths. Fully wireless and battery-operated with up to 11 years of operation from a single user-replaceable C-cell LTC battery, making it ideal for remote field deployments where power is unavailable. LoRaWAN radio operates at 22 dBm Tx with −137 dBm sensitivity for long-range coverage. Operates from −20 to +60 °C. Onboarding takes seconds via the TEKTELIC LeapX app, with remote configuration through ATLAS and an open API for third-party integrations.

Note: This V2 SKU ships without probe cables. Probes and cable assemblies are sold separately — see compatible accessories.

Note: Other regional channel plans (US915, AU915, AS923, IN865, KR920) are available on request — please contact us for a quote.

Note: Compatible with any standard LoRaWAN network server (The Things Network, ChirpStack, Helium, Loriot, and others).

Note: A magnet (not included) is required to wake the sensor from deep sleep on first deployment.

Price
194.47 € 194.47 €
194.47 €
(Tax excluded)
Terms and Conditions
Key features Technical Specs Documentation

Key features

Soil monitoringWater tension & temperature · up to 2 watermark + 2 thermistor probes
Ambient sensingBuilt-in temperature · humidity · light (LUX) · accelerometer
Rugged IP67Outdoor enclosure · −20 to +60 °C · 120 × 90 × 58 mm · 224 g
11 years batteryC-cell LTC · user-replaceable · battery status indicator
LoRaWAN EU868Class A · 22 dBm Tx · −137 dBm sensitivity · internal antenna
Easy onboardingQR-based activation via LeapX · open API · ATLAS web management


Technical Specs

Soil water tensionVia external watermark probe (input 5 or 6 · up to 2 probes)
Soil temperatureVia external thermistor probe (input 3 or 4 · up to 2 probes)
External inputs4 analog + 2 digital probe inputs
Ambient temperatureBuilt-in sensor
Ambient humidityBuilt-in relative humidity sensor
Light detectionBuilt-in ambient light sensor (LUX)
Movement detectionOnboard accelerometer · orientation and motion events
Mounting orientationStatus reporting based on accelerometer
Battery indicatorRemaining battery capacity and estimated days reported


RadioLoRaWAN · EU868 (863–870 MHz)
Device classClass A
RF transmit power22 dBm
RF sensitivity−137 dBm (SF12, 125 kHz)
AntennaInternal
BatteryC-cell LTC · user-replaceable
Battery lifeUp to 11 years (configuration dependent)
Other regions availableUS915, AU915, AS923-1/2/3/4, IN865, KR920


OnboardingQR-based activation via TEKTELIC LeapX app
Remote configurationOTA via LoRaWAN downlinks · ATLAS or LeapX
Configurable parametersReporting intervals · sensor thresholds · per-input enable
Reporting modesPeriodic and event-based
IntegrationOpen API · compatible with TTN, ChirpStack, Helium, Loriot and others


Dimensions120 × 90 × 58 mm
Weight224 g (incl. battery)
Operating temperature−20 °C to +60 °C
Ingress protectionIP67
External probe cablesVia water-tight cable gland · field-installable connectors
MountingSurface or elevated mounting · field-supplied hardware
ComplianceCE · LoRaWAN certified



Other regions: This product page covers the EU868 variant. Versions for US915, AU915, AS923 (variants 1–4), IN865 and KR920 channel plans are available on request — please contact us for a quote.


Probe cables not included: This SKU ships without probe cables. Compatible accessories — soil thermistor probes, Watermark soil moisture probes, pre-wired probe cable assemblies, and field-installable KIWI connectors — are sold separately. Up to 2 watermark and 2 thermistor probes can be connected.


Use cases: Precision agriculture · irrigation management · vineyards · orchards · greenhouses · soil moisture monitoring across multiple depths · crop and microclimate insights.


Related product: The CLOVER Agriculture Sensor variant offers built-in probes integrated into the enclosure for users who prefer a single-unit deployment without external cabling.


Documentation

KIWI Agriculture Sensor Product Page (Tektelic)

KIWI Spec Sheet (PDF)

KIWI & CLOVER User Guide (PDF)
