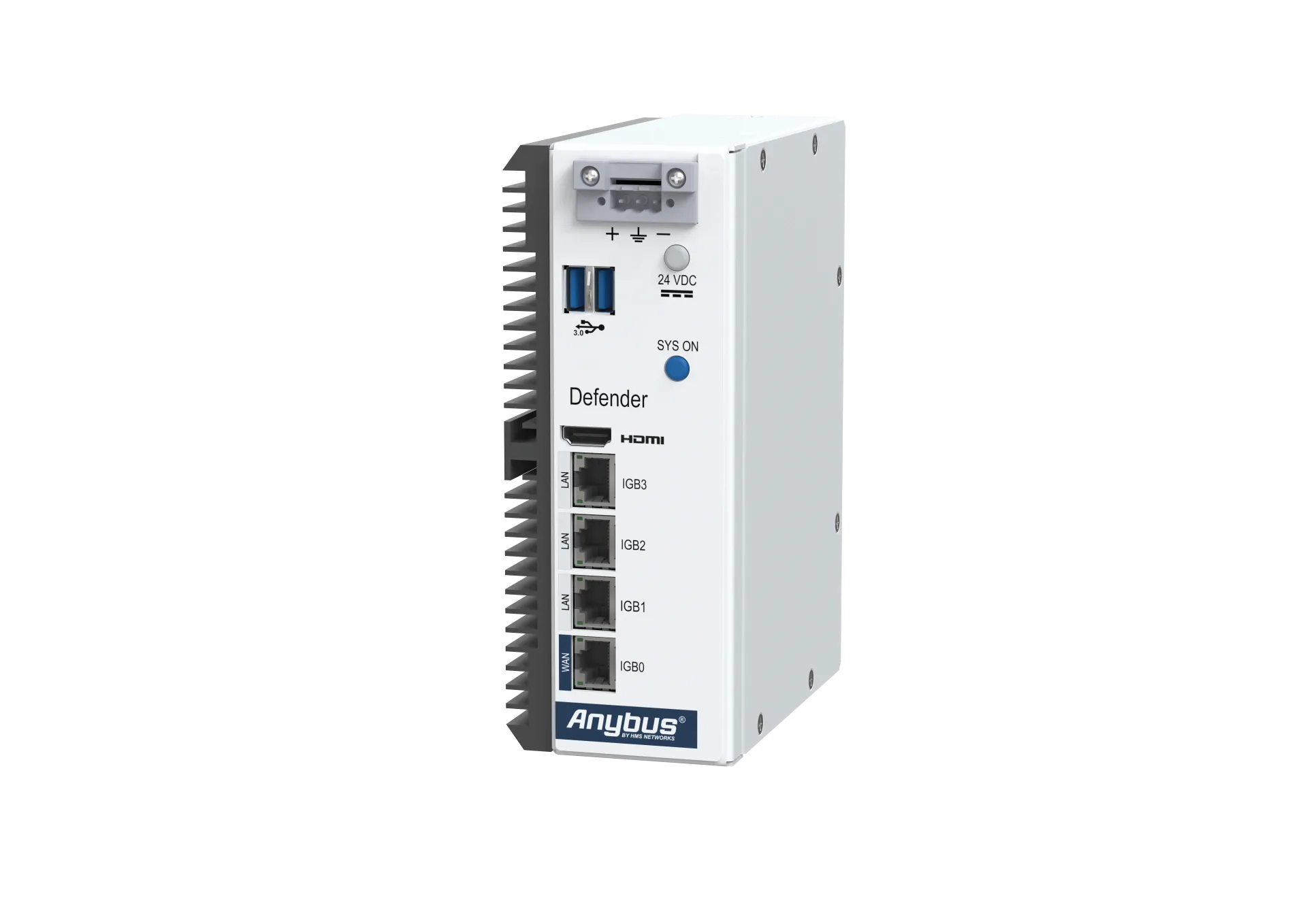

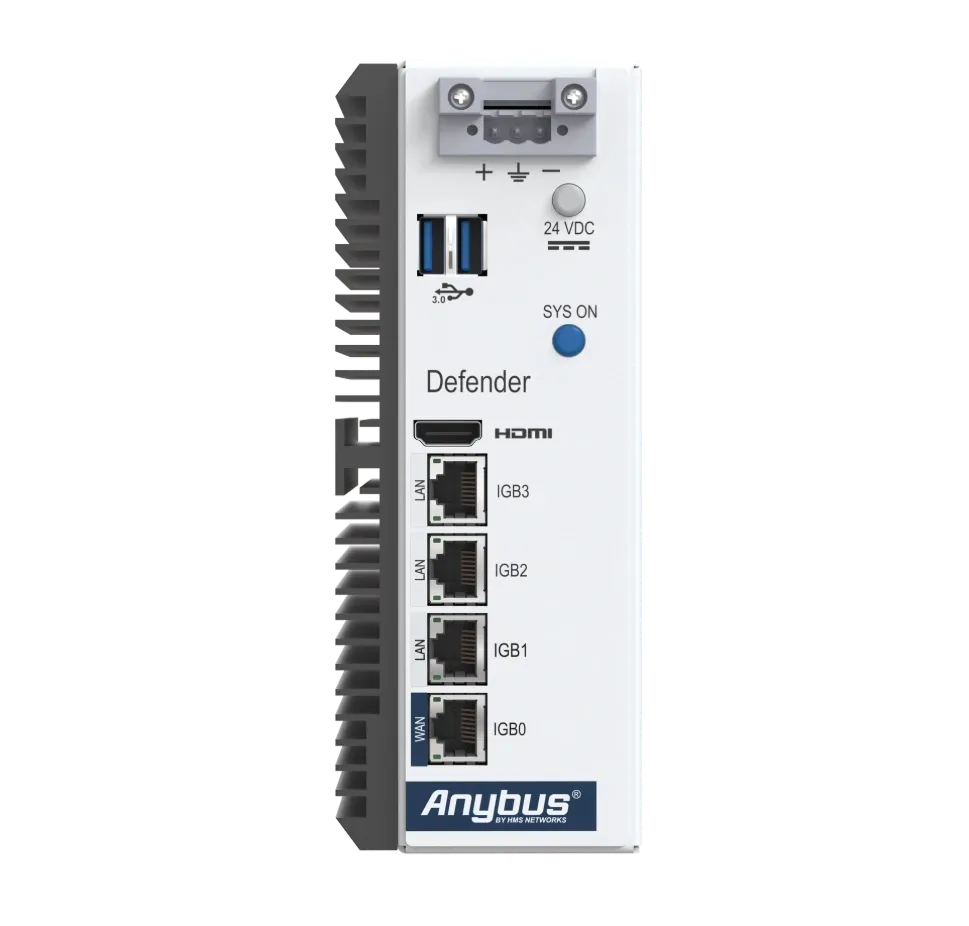

ABD6004-PROFW

The ultimate industrial security appliance — full PRO/FW feature set on 4 Gigabit Ethernet ports. The Anybus Defender 6004 with PRO/FW license combines the most powerful OT protection capabilities with the most flexible network topology in the Defender range.

Everything from NAT/FW and DPI/FW included: Deep Packet Inspection on Ethernet/IP CIP and Modbus, virtual patching via Snort and Suricata IPS, VPN (WireGuard, OpenSSL, IPsec), RADIUS/LDAP/AD authentication, DHCP server and policy scheduling. Plus PRO-exclusive features: advanced routing (RIP, BGP), traffic shaping, load balancing with multi-WAN, captive portal and high availability redundancy.

4x Gigabit Ethernet with individually configurable ports — reconfigure a LAN as 2nd WAN for true multi-WAN load balancing and failover. Ideal for large multi-zone OT environments and multi-site deployments with encrypted plant-to-plant VPN connections, centrally managed through the optional Anybus Cybersecurity Console.

Rugged fan-less IP50 metal enclosure with DIN rail mounting.

4,930.00 € 4,930.00 € (Tax excluded)
4,930.00 € (Tax excluded)

Add to cart
Terms and Conditions
Contact Us
How it worksKey use casesTechnical SpecsDocumentation

How it works

1
Install
Mount on DIN rail, connect WAN and up to 3 LAN segments — or configure multi-WAN for redundant uplinks
2
Discover & learn
Asset scanner maps all OT devices. DPI auto-learns industrial traffic patterns across all ports and suggests rules
3
Configure
Set up DPI policies, VPN tunnels, HA failover, traffic shaping and routing via web GUI — or manage centrally via the Console
4
Enforce & monitor
Full protection active across all segments: DPI, IPS, VPN, traffic shaping, HA and load balancing — with real-time notifications



Key use cases

Multi-zone OT security4x Gigabit ports with individually configurable LANs — protect multiple zones from one appliance with DPI on every segment
Deep Packet InspectionInspect Ethernet/IP CIP and Modbus at the application layer across all ports — auto-learn capable
Plant-to-plant VPNEncrypted OT connections between facilities using WireGuard, OpenSSL or IPsec — with multi-WAN failover
High availabilityRedundant deployment with automatic failover — no single point of failure for your OT security
Load balancing & multi-WANReconfigure a LAN port as 2nd WAN — distribute traffic for resilience and performance across uplinks
Traffic shapingPrioritize critical OT traffic and limit bandwidth for non-essential communications across all segments



Technical Specs

License typePRO/FW — Perpetual
Stateful firewallYes — deny by default
NATSimple NAT wizard, 1:1, 1:many
Bridge / transparent modeYes
VLAN supportYes — logical segmentation
Certificate managementYes
Deep Packet InspectionEthernet/IP CIP, Modbus — auto-learn capable
Intrusion Protection (IPS)Snort & Suricata — customizable signatures
Virtual patchingYes — protect unpatched legacy devices
VPNWireGuard, OpenSSL & IPsec
Remote client VPNYes
RADIUS / LDAP / AD authenticationYes
DHCP server & forwardingYes
Rules/policy schedulerYes — by date, time and duration
Captive portalYes
Routing protocolsRIPv1 & v2, BGPv4
Load balancingYes — multi-WAN (LAN port reconfigurable as 2nd WAN)
Traffic shapingYes
High availabilityYes — redundancy with automatic failover
Asset discovery & inventoryYes — OT/ICS specific, with accuracy score
NotificationsEmail, syslog, Telegram Messenger, Pushover
Central managementOptional — Anybus Cybersecurity Console


WAN1x RJ45 Gigabit Ethernet
LAN3x RJ45 Gigabit Ethernet (individually configurable)
ReconfigurableLAN ports can be reconfigured as 2nd WAN port
VLANSupported — additional logical segments
Total ports4x Gigabit RJ45


Web GUIOn-board web interface with use-case wizards
Rule creationOne-click from firewall logs + floating rules
APIIntegrated RESTful API
CLISSH / Console access
DiagnosticsTraffic diagnostics, debug tools, ARP & bandwidth monitoring


Input voltage24V DC
Current consumption (max)1100 mA
Power consumption (max)26.4W


IP ratingIP50
Housing materialMetal — fan-less
MountingDIN rail (EN 50022)
Dimensions (L x W x H)140.4 x 69.6 x 179.7 mm
Weight1270 g
Operating temperature0°C to +50°C
Humidity0–85% non-condensing


CEYes
RoHSYes (2011/65/EU)
WEEEYes
Country of originUSA




The Defender 6004 PRO/FW is the most complete appliance in the range. 4 Gigabit ports with full PRO feature set — DPI, IPS, VPN, HA, traffic shaping, load balancing, advanced routing and captive portal. Multi-WAN capable by reconfiguring a LAN port as 2nd WAN. For simpler deployments, see the NAT/FW or DPI/FW licenses. For a 2-port form factor, see the Defender 4002.


Documentation

anybus-defender-6004-datasheet-20240502.pdf

Anybus Defender Documentation
