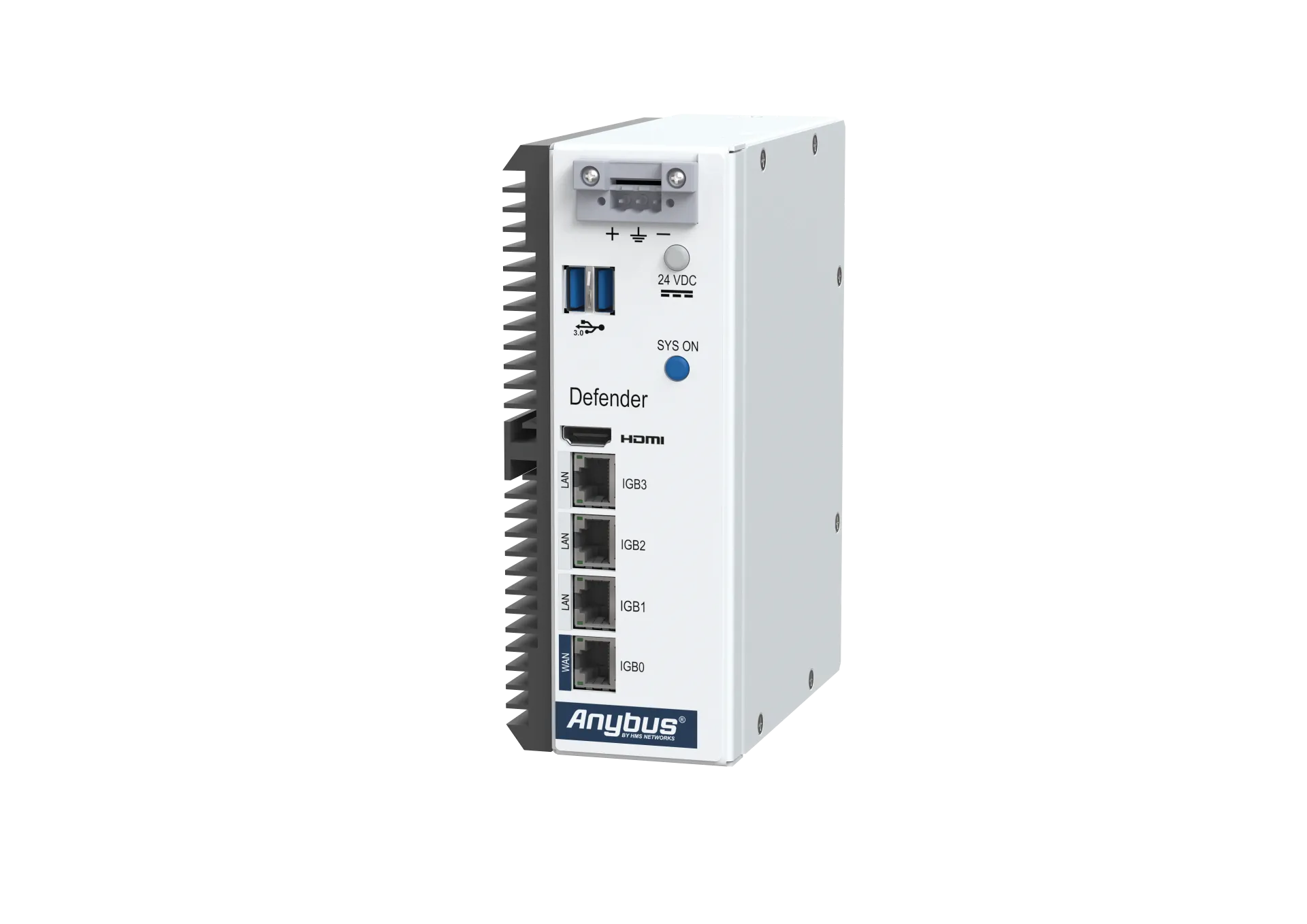

ABD6004-NATFW

Name: ABD6004-NATFW
Price: 2030.0 EUR
Availability: InStock

Industrial security appliance with 4 Gigabit Ethernet ports for flexible OT network protection. The Anybus Defender 6004 with NAT/FW license provides essential firewalling, NAT and network segmentation across multiple physical and logical segments — 1x WAN and 3x individually configurable LAN ports (reconfigurable as 2nd WAN when needed).

Deny-by-default stateful firewall with versatile NAT configuration, transparent bridging and VLAN support. Built-in OT asset discovery identifies every connected device with make, type, firmware version and patch level. Configuration via intuitive web GUI with use-case wizards, one-click rule creation from firewall logs, RESTful API and CLI access. Optional central management via the Anybus Cybersecurity Console.

Rugged fan-less IP50 metal enclosure with DIN rail mounting. Ideal for protecting multiple machine cells or OT zones from a single appliance.

Add to cart

Add to wishlist

Price

2,030.00 € (Tax excluded)

Terms and Conditions

How it works

Install

Mount on DIN rail, connect WAN and up to 3 LAN segments to your machine cells or OT zones

Discover

Asset scanner identifies all connected OT devices across all LAN segments with firmware and patch level details

Configure

Use the web GUI with use-case wizards to set up NAT, firewall rules and whitelists per port — one-click rule creation from logs

Protect

Switch to enforcement — only whitelisted traffic gets through on each segment. Multiple zones secured from one device

Key use cases

Multi-segment OT protection4x Gigabit ports — 1 WAN + 3 individually configurable LANs. Protect multiple zones from a single appliance

IP conflict avoidanceVersatile NAT (1:1, 1:many) to connect identical machines on one network without address conflicts

Machine cell isolationDeny-by-default firewall with VLAN support — each LAN port can protect a separate machine cell or zone

IEC 62443 complianceImplement security zones and conduits according to industry standards for precise machine isolation

OT asset discoveryAutomatically identify every device across all LAN segments — make, type, firmware version and patch level

Transparent bridgingDrop into an existing network at Layer 2 without changing any IP addresses — invisible to connected devices

Technical Specs

Features & license

License type	NAT/FW — Perpetual
Stateful firewall	Yes — deny by default
NAT	Simple NAT wizard, 1:1, 1:many
Bridge / transparent mode	Yes
VLAN support	Yes — logical segmentation
Certificate management	Yes
Asset discovery & inventory	Yes — OT/ICS specific, with accuracy score
Notifications	Email, syslog, Telegram Messenger, Pushover
Central management	Optional — Anybus Cybersecurity Console

Network interfaces

WAN	1x RJ45 Gigabit Ethernet
LAN	3x RJ45 Gigabit Ethernet (individually configurable)
Reconfigurable	LAN ports can be reconfigured as 2nd WAN port
VLAN	Supported — additional logical segments
Total ports	4x Gigabit RJ45

Configuration

Web GUI	On-board web interface with use-case wizards
Rule creation	One-click from firewall logs + floating rules
API	Integrated RESTful API
CLI	SSH / Console access
Diagnostics	Traffic diagnostics, debug tools, ARP & bandwidth monitoring

Power

Input voltage	24V DC
Current consumption (max)	1100 mA
Power consumption (max)	26.4W

Enclosure

IP rating	IP50
Housing material	Metal — fan-less
Mounting	DIN rail (EN 50022)
Dimensions (L x W x H)	140.4 x 69.6 x 179.7 mm
Weight	1270 g
Operating temperature	0°C to +50°C
Humidity	0–85% non-condensing

Certifications

CE	Yes
RoHS	Yes (2011/65/EU)
WEEE	Yes
Country of origin	USA

Need more? The NAT/FW license covers essential firewalling, NAT, bridging and asset discovery across all 4 Gigabit ports. For Deep Packet Inspection on industrial protocols (Ethernet/IP, Modbus), virtual patching via IPS, VPN, DHCP server and policy scheduling — upgrade to the DPI/FW license. For advanced routing, traffic shaping, load balancing and high availability — see the PRO/FW license.

Documentation

anybus-defender-6004-datasheet-20240502.pdf

Anybus Defender Documentation
