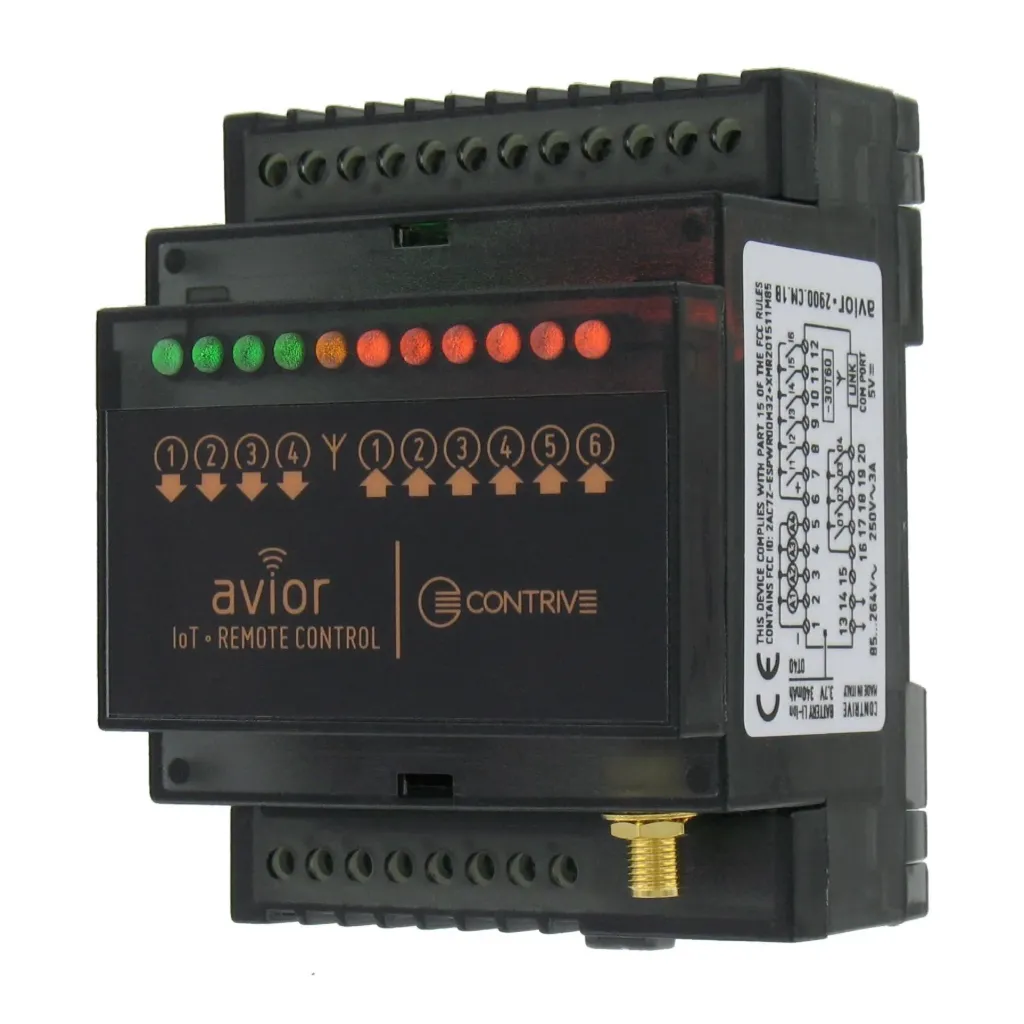

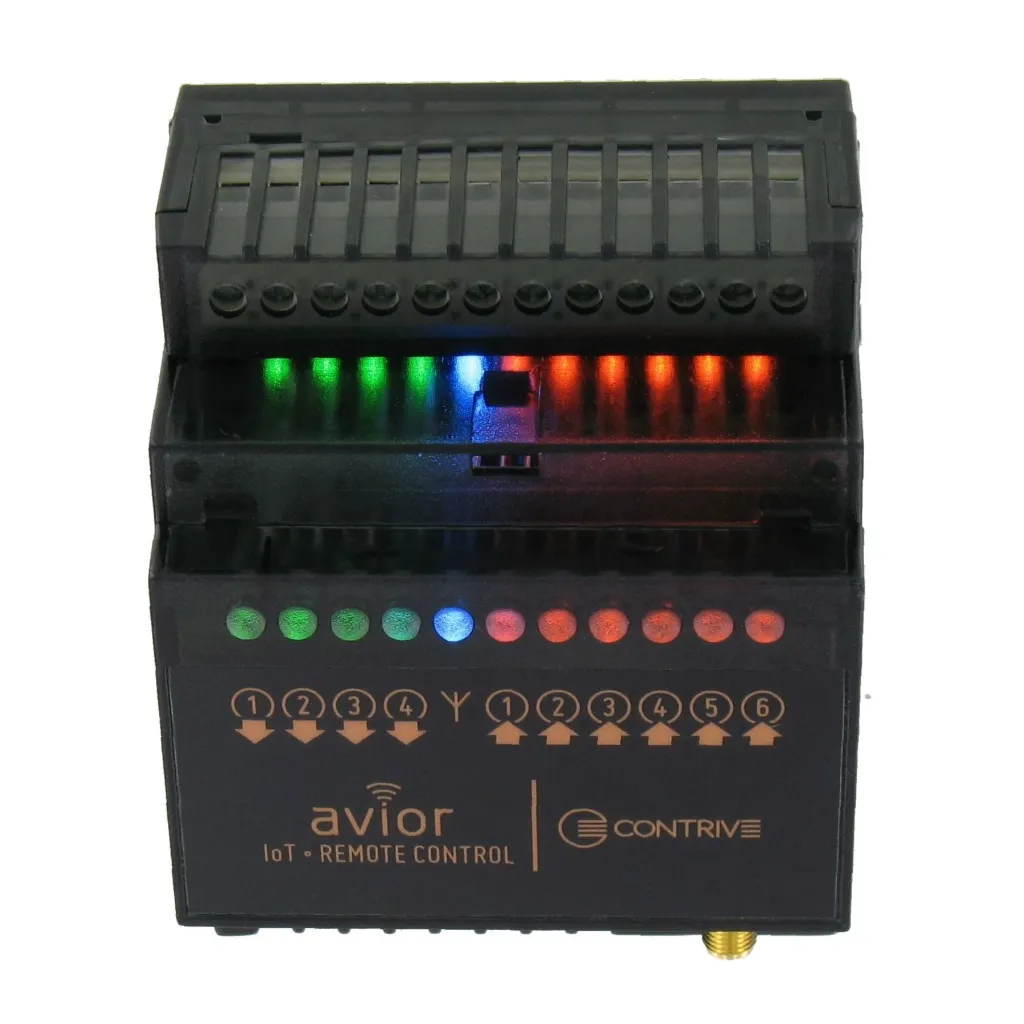

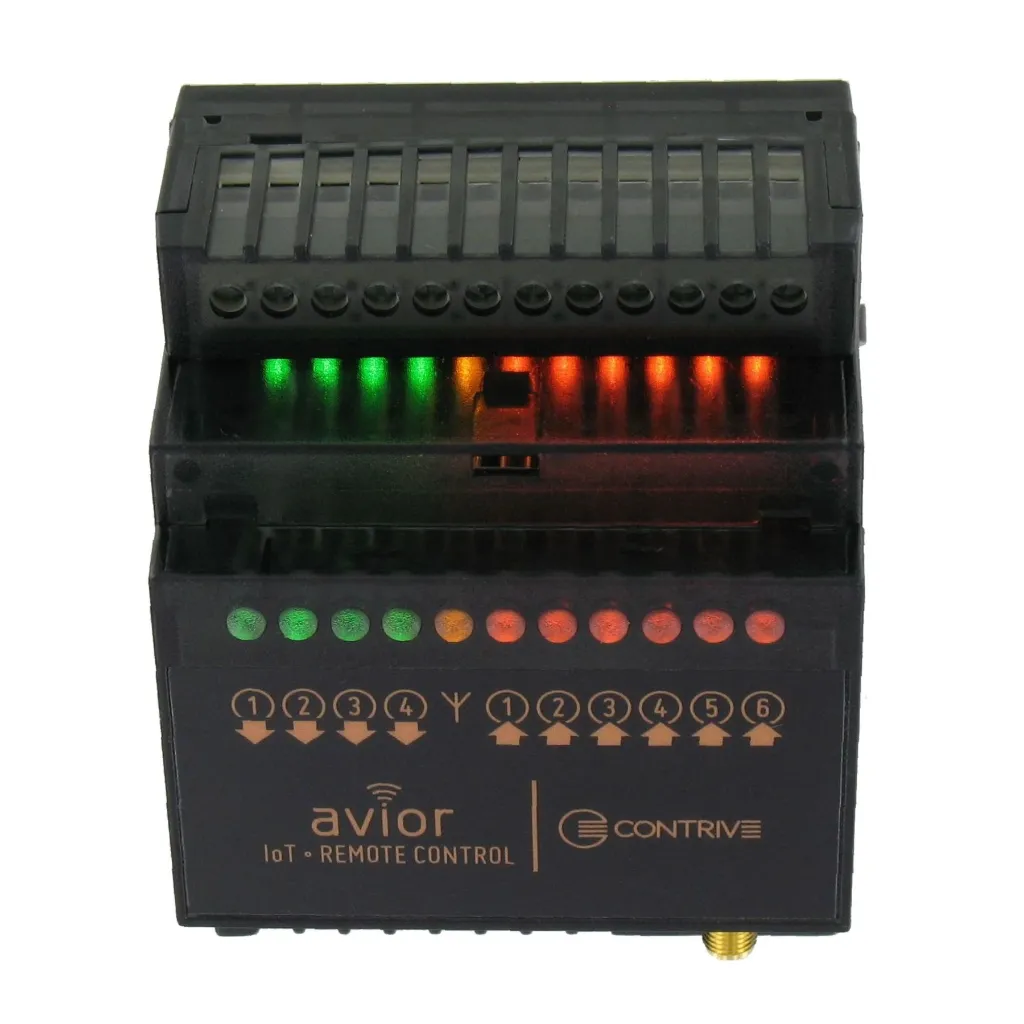

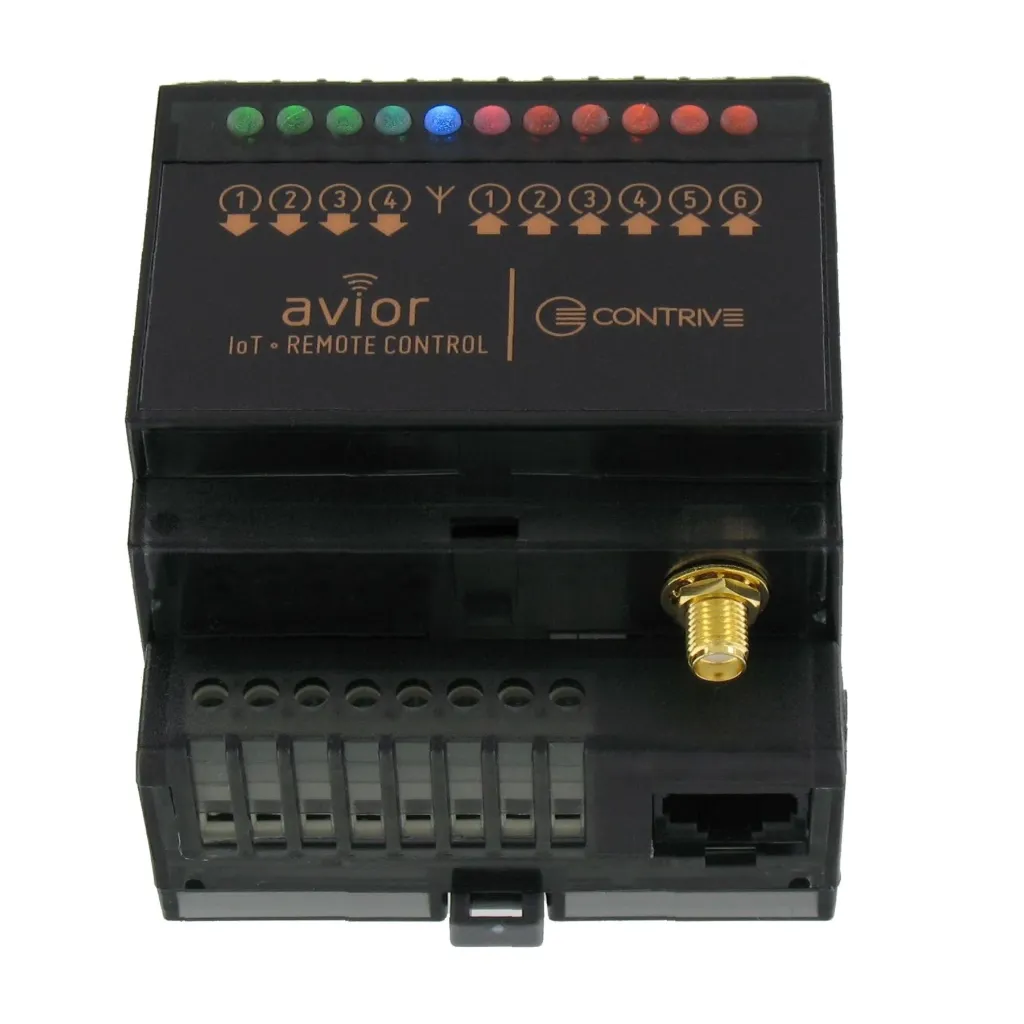

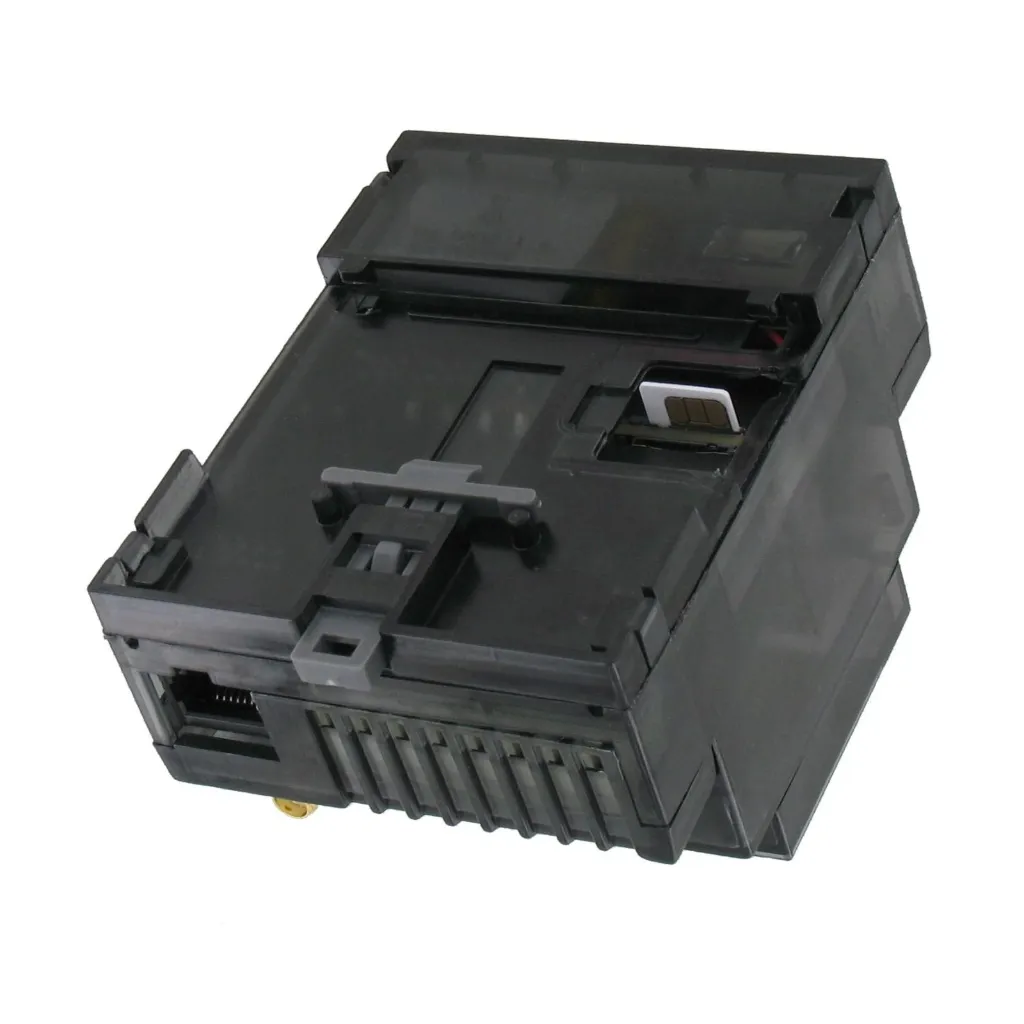

The Avior (2900.C0.0B) is a DIN rail-mounted WiFi controller for remote monitoring and control of industrial and building automation systems. This version is powered exclusively via the RJ45 socket (5 VDC) and has no cellular connectivity. It combines 6 digital inputs, 4 analog inputs, and 4 relay outputs with an embedded web server, Modbus, MQTT, and HTTP support — enabling local and remote control without additional middleware. Alerts can be sent via SMS, call, email, chat, HTTP, or MQTT on any local event.
Connectivity runs via 802.11 b/g/n WiFi (2.4 GHz, WPA/WPA2) and Bluetooth 4.2 (BLE) for compatible accessories such as temperature sensors, door sensors, and smart plugs. Analog inputs accept 0–10 V, 0–20 mA, or NTC signals (±2% accuracy); relay outputs are rated 3 A / 250 VAC. The unit fits a 4-module DIN EN-50022 rail, is rated IP40, and operates from −20 °C to +60 °C. An optional Li-Poly backup battery maintains operation during power loss.
Note: This version is powered exclusively via the RJ45 socket (5 VDC). PLMN cellular connectivity (2G or 4G) requires an optional expansion card with a microSIM (3FF).
